Xtreme Cut HD
Xtreme
Cut HD
6,640 lb-ft
Maximum Torque
60 GPM
Maximum Flow Rate
130 RPM
Maximum Speed
Introduction
It's only the highest torque in the industry.

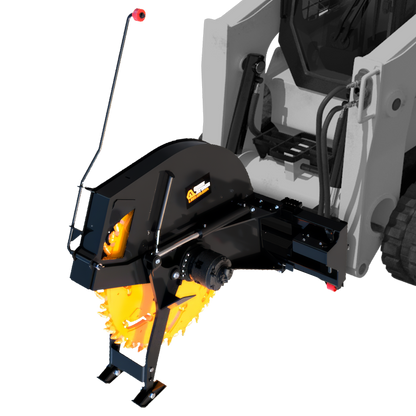

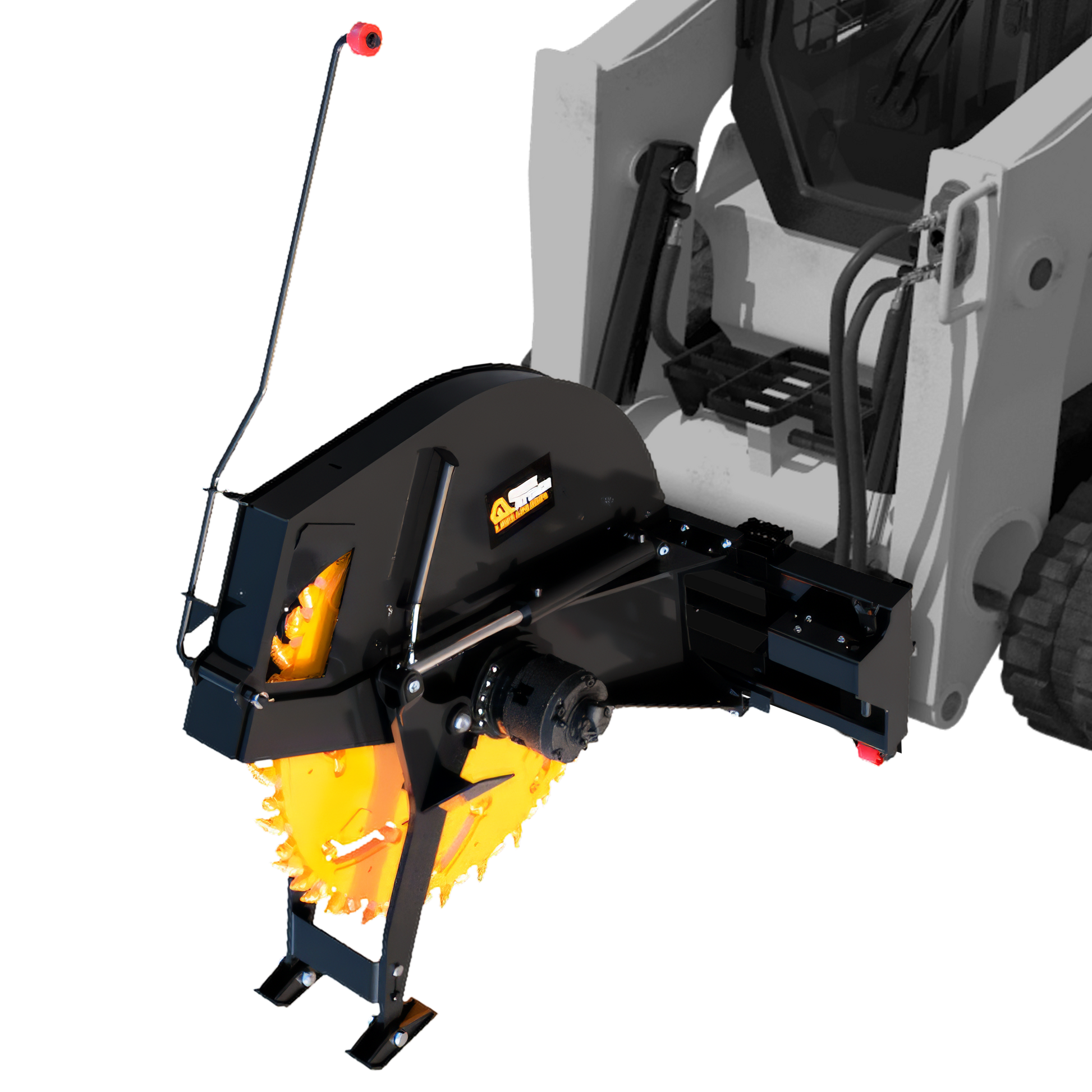

Cut through asphalt and concrete with greater efficiency with the Heavy-Duty Rock Saw. This powerhouse delivers up to 20 FPM cutting speeds. Hydraulic side-shift and depth control allows skid steer operators to shift it up to 24” for maneuvering close to buildings and other obstacles from the comfort of your seat. Cut up to 18” or 24” deep. Side cutting teeth, a side motor protection blade, and a floating spoil deflector come standard.
Key Features
Everything you need to get the job done right.
Industry-Leading Torque
With a maximum torque of 6,640 ft-lbs, this equipment offers the highest torque rating in the industry for powerful cutting performance.
Rigid 1”-Thick Support Frame
The 1-inch-thick support frame enhances rigidity and mass, providing stability and minimizing vibrations for precise cutting.
High-Performance Piston Motor
The high-performance piston motor ensures consistent power and efficiency, effectively handling various cutting tasks under heavy loads.
Sturdy 1”-Thick Wheel
The 1-inch-thick wheel adds rigidity and mass, maintaining its shape for improved durability and accurate cuts in tough materials.
Specifications
Specs tough enough
for anything
Maximum Torque
6,640 lb-ft
Maximum Flow Rate
60 GPM
Maximum Speed
130 RPM
| 18HDRS | 24HDRS | |
|---|---|---|
| Part Number | 901306 | 901307 |
| Cutting Speed | Up to 20 FPM | Up to 20 FPM |
| Depth Control | Hydraulic | Hydraulic |
| Depth Of Cut | 18" | 24" |
| Height | 53" | 64" |
| Hydraulic Flow Classification | High Flow | High Flow |
| Length | 69.5" | 76.2" |
| Maximum Flow Rate | 60 GPM | 60 GPM |
| Maximum Power Output | 80 HP | 80 HP |
| Maximum Pressure | 4,800 psi | 4,800 psi |
| Maximum Speed | 130 RPM | 130 RPM |
| Maximum Torque | 6,640 lb-ft | 6,640 lb-ft |
| Minimum Flow Rate | 25 GPM | 25 GPM |
| Minimum Operating Pressure | 2,200 psi | 2,200 psi |
| Number Of Teeth | 54 | 72 |
| Options | Pistol Grip Control Harness Loader Specific Wire Harness Factory Installed Case Drain Coupler Factory Installed Couplers Factory Installed High Flow Couplers | Pistol Grip Control Harness Loader Specific Wire Harness Factory Installed Case Drain Coupler Factory Installed Couplers Factory Installed High Flow Couplers |
| Overall Width | 66.5" | 66.5" |
| Side Shift Control | Hydraulic | Hydraulic |
| Side Shift Distance | 24" | 24" |
| Weight | 2,550 lb. | 3,150 lb. |
| Width Of Cut | 2.75" | 2.75" |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
