Razor Tooth
9"
Cutting Depth
180 RPM
Maximum Speed
40 GPM
Maximum Flow Rate
Introduction
Cutting it close.

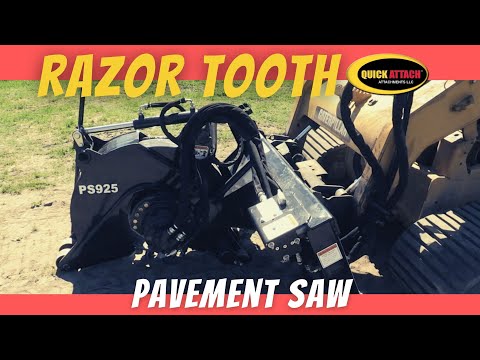

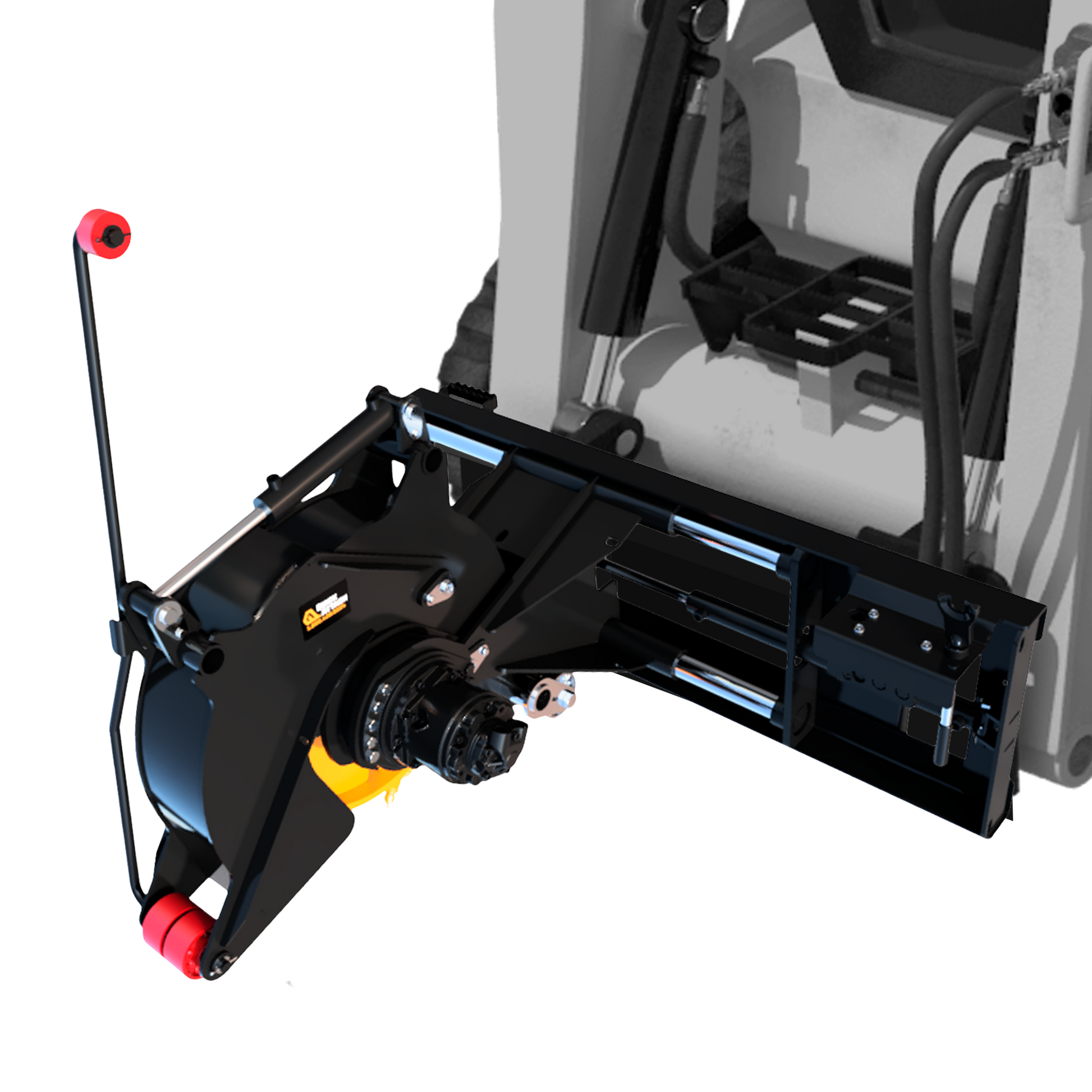

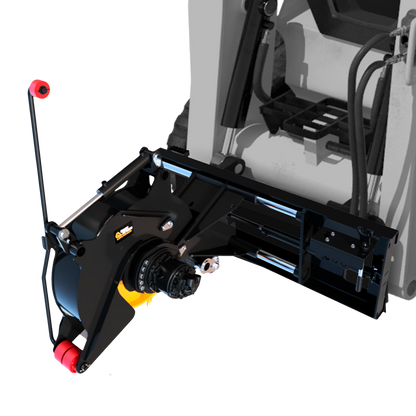

The Pavement Saw is a cost effective alternative to a more cumbersome self-propelled saw unit. With its powerful planetary/motor combination, the 9” cutter wheel depth is ideal for cutting patches, expansion joints and pavement cuts for utility and traffic loops. Planetary drive motor and tungsten carbide teeth eat through asphalt and hard surfaces with ease. The patented electro-hydraulic side-shift enables the Razor Tooth to cut close to walls, curbs and other fixed objects.
Key Features
Everything you need to get the job done right.
Versatile Skid Steer Compatibility
Designed to fit all skid steer loaders with high flow hydraulic capacity, this saw replaces cumbersome self-propelled units, maximizing equipment use.
9” Cutting Depth
The 9-inch cutting depth is perfect for patches, expansion joints, and precise pavement cuts for utility lines and traffic loops.
Electro-Hydraulic Side-Shift
The electro-hydraulic side-shift allows for close cutting near walls, curbs, and fixed objects, enhancing precision in tight spaces.
Retracting Built-In Shroud
The built-in shroud retracts with increased cutting depth, minimizing dust and debris for a cleaner, safer cutting environment.
Specifications
Specs tough enough
for anything
Cutting Depth
9"
Maximum Speed
180 RPM
Maximum Flow Rate
40 GPM
915PS | 925PS | 945PS | |
---|---|---|---|
Part Number | 901196 | 901182 | 901183 |
Depth Control | Hydraulic | Hydraulic | Hydraulic |
Depth Of Cut | 9” | 9” | 9” |
Height | 40" | 40" | 40" |
Hydraulic Flow Classification | High Flow | High Flow | High Flow |
Length | 59" | 59" | 59" |
Maximum Flow Rate | 40 GPM | 40 GPM | 40 GPM |
Maximum Power Output | 60 | 60 | 60 |
Maximum Pressure | 5,500 psi | 5,500 psi | 5,500 psi |
Maximum Speed | 180 RPM | 180 RPM | 180 RPM |
Maximum Torque | 5,000 lb-ft | 5,000 lb-ft | 5,000 lb-ft |
Minimum Flow Rate | 22 GPM | 25 GPM | 25 GPM |
Minimum Operating Pressure | 2,800 psi | 2,800 psi | 3,000 psi |
Number Of Teeth | 36 | 28 | 28 |
Options | Pistol Grip Control Harness Loader Specific Wire Harness Factory Installed Case Drain Coupler Factory Installed Couplers Factory Installed High Flow Couplers | Pistol Grip Control Harness Loader Specific Wire Harness Factory Installed Case Drain Coupler Factory Installed Couplers Factory Installed High Flow Couplers | Pistol Grip Control Harness Loader Specific Wire Harness Factory Installed Case Drain Coupler Factory Installed Couplers Factory Installed High Flow Couplers |
Overall Width | 67" | 67" | 67" |
Side Shift Control | Hydraulic | Hydraulic | Hydraulic |
Side Shift Distance | 24" | 24" | 24" |
Weight | 1,300 lb. | 1,335 lb. | 1,365 lb. |
Width Of Cut | 1.5" | 2.5" | 4.5" |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
