The Rock Haul
The
Rock Haul
60", 72", 84"
Widths
38.75"
Maximum Grapple Opening
Grade 50
Bucket Steel Construction
Introduction
The toughest grapple for the toughest jobs.

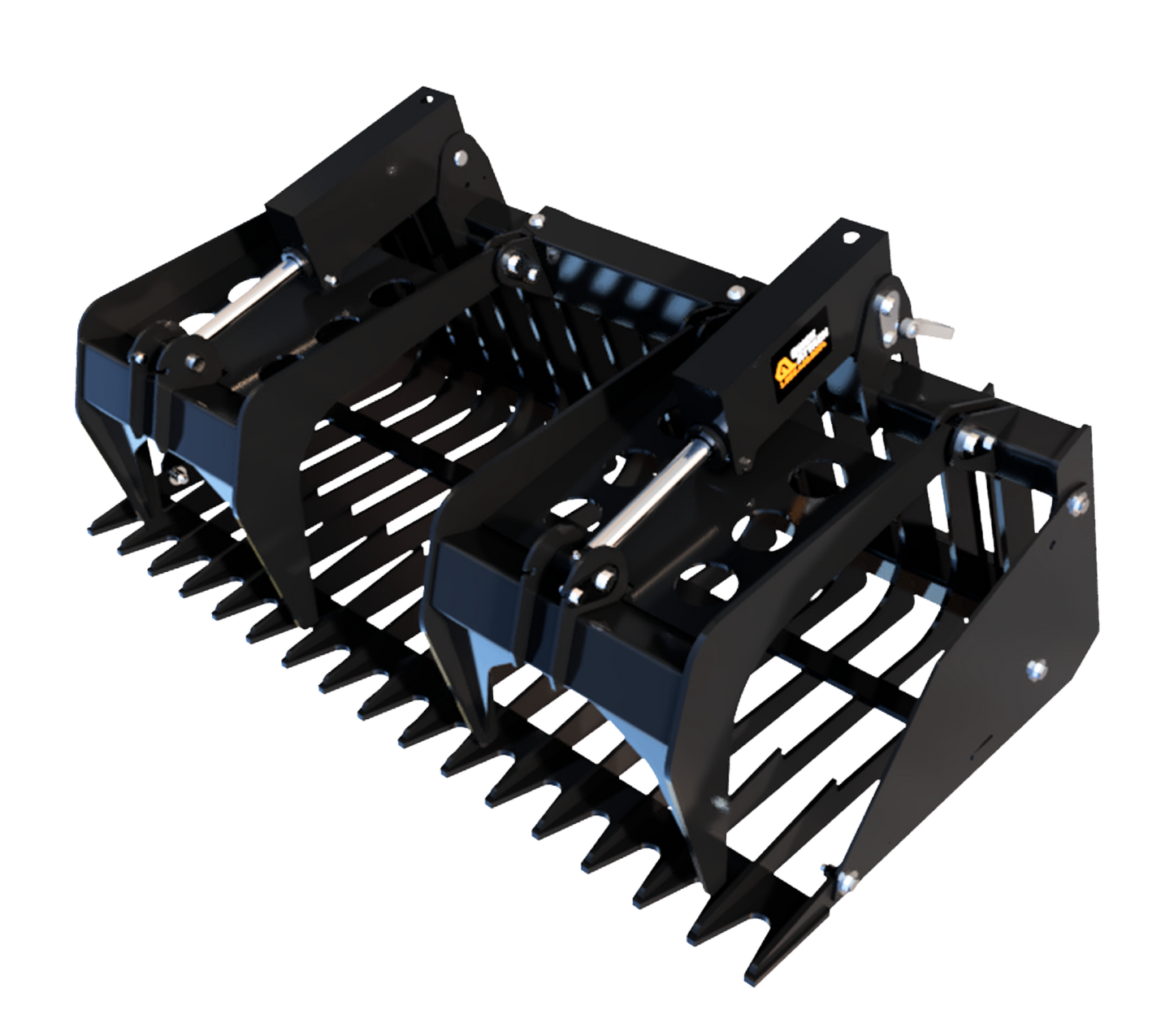

The Skeleton Rock Bucket Grapple is engineered to pick rocks and debris from the soil with the added feature of independent grapples to secure a variety of materials. Extra long tines allow you to carry larger loads. Gusseted tines make this attachment versatile for rooting and back dragging as well.
Key Features
Everything you need to get the job done right.
Excellent Operator Visibility
The open design enhances visibility, allowing operators to navigate tight spaces and manage loads with precision, increasing safety and productivity.
Extra Long Tines for Larger Loads
Long tines enable the grapple to handle heavier and bulkier materials, making it ideal for demanding tasks like land clearing and debris removal.
Tines Prevent Material from Rolling
Designed to keep materials from rolling forward, the tines ensure secure transport, minimizing spillage and enhancing control during operation.
Grade 50 Steel Construction
The bucket is made from Grade 50 steel, providing exceptional strength and durability to withstand heavy loads and harsh conditions.
Specifications
Specs tough enough
for anything
Widths
60", 72", 84"
Maximum Grapple Opening
38.75"
Bucket Steel Construction
Grade 50
| 60" | 72" | 84" | |
|---|---|---|---|
| Part Number | 925044 | 925045 | 925046 |
| Bucket Steel Construction | Grade 50 | Grade 50 | Grade 50 |
| Bucket Tine Thickness | 3/8" | 3/8" | 3/8" |
| Cylinders | 2"x8" (2) | 2"x8" (2) | 2"x8" (2) |
| Depth | 28.625" | 28.625" | 28.325" |
| Height Closed | 27.25" | 27.25" | 27.25" |
| Height Open | 42.625" | 42.625" | 42.625" |
| Maximum Grapple Opening | 38.75" | 38.75" | 38.75" |
| Spacing Between Teeth | 3.0625" | 3" | 3.25" |
| Weight | 630 lb. | 670 lb. | 715 lb. |
| Width | 60" | 72" | 84" |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
