Quick Power Scape Mini
Quick Power
Scape Mini
7"
Drum Size
0-2.5”
Working Depth
Tungsten-Carbide
Teeth
Introduction
Ready to tackle your dirty jobs.

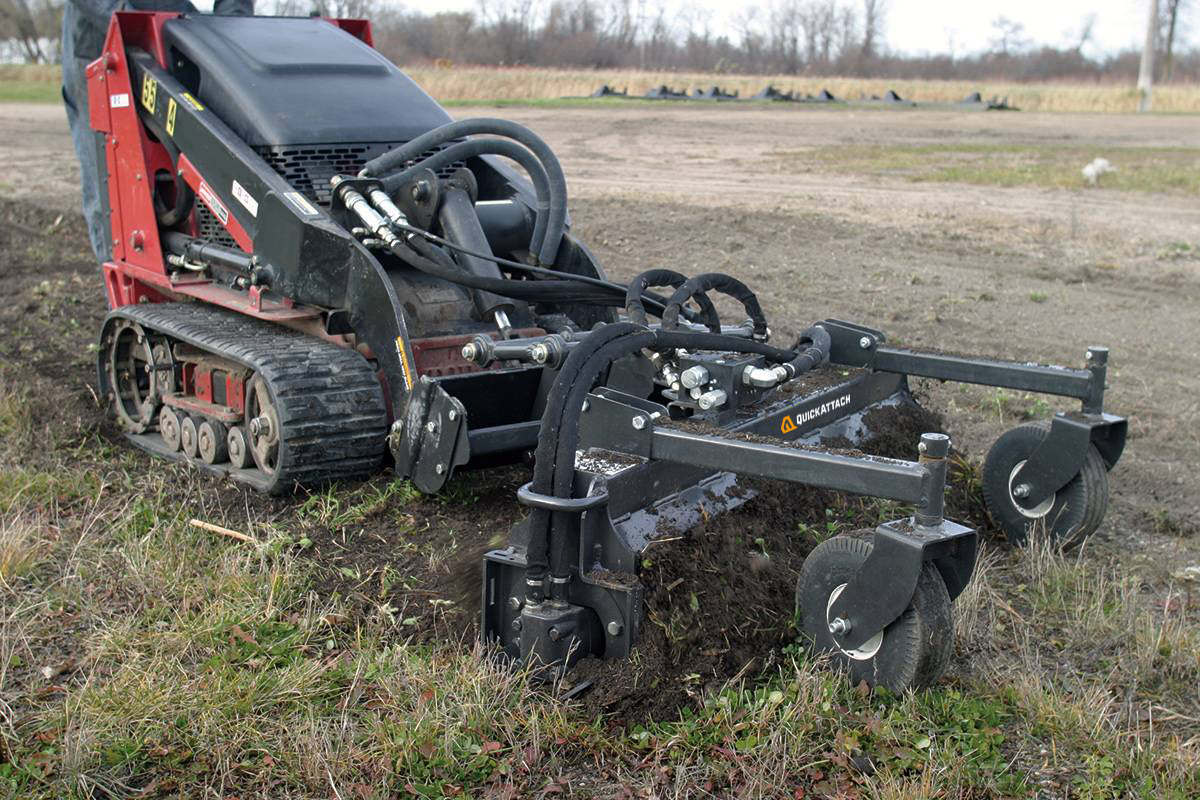

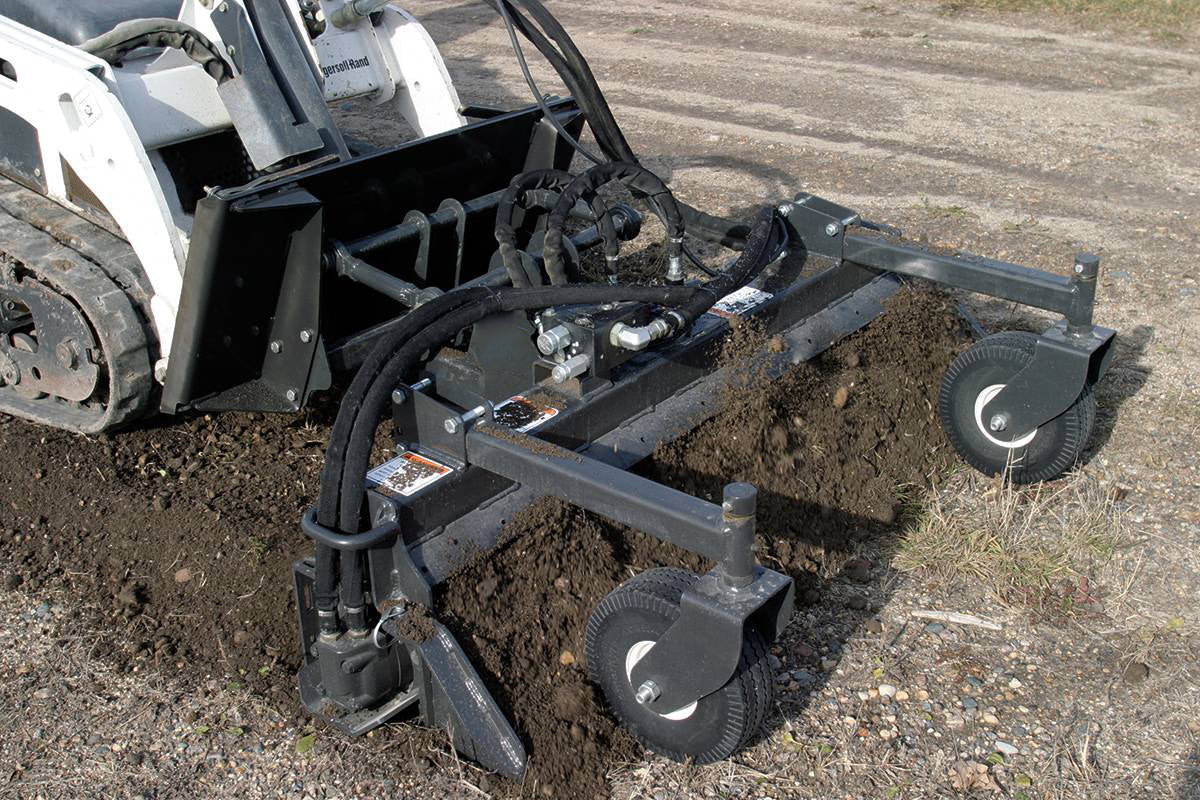

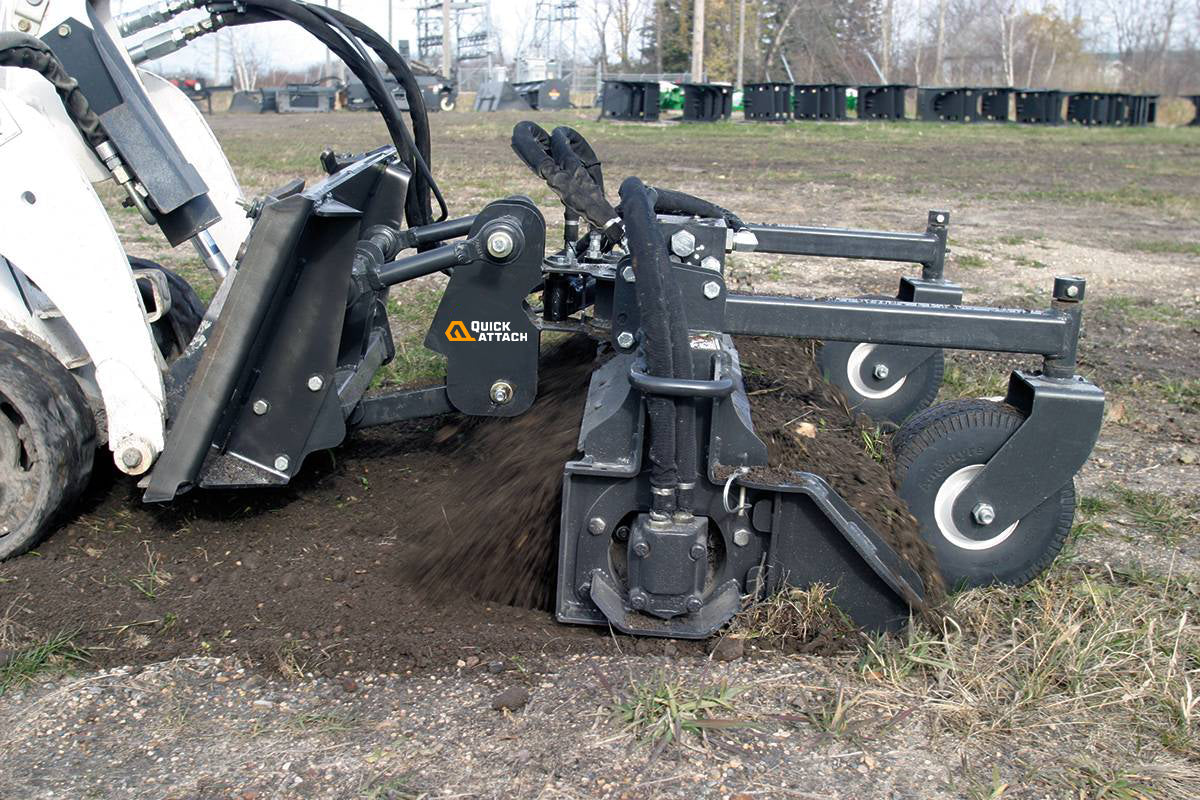

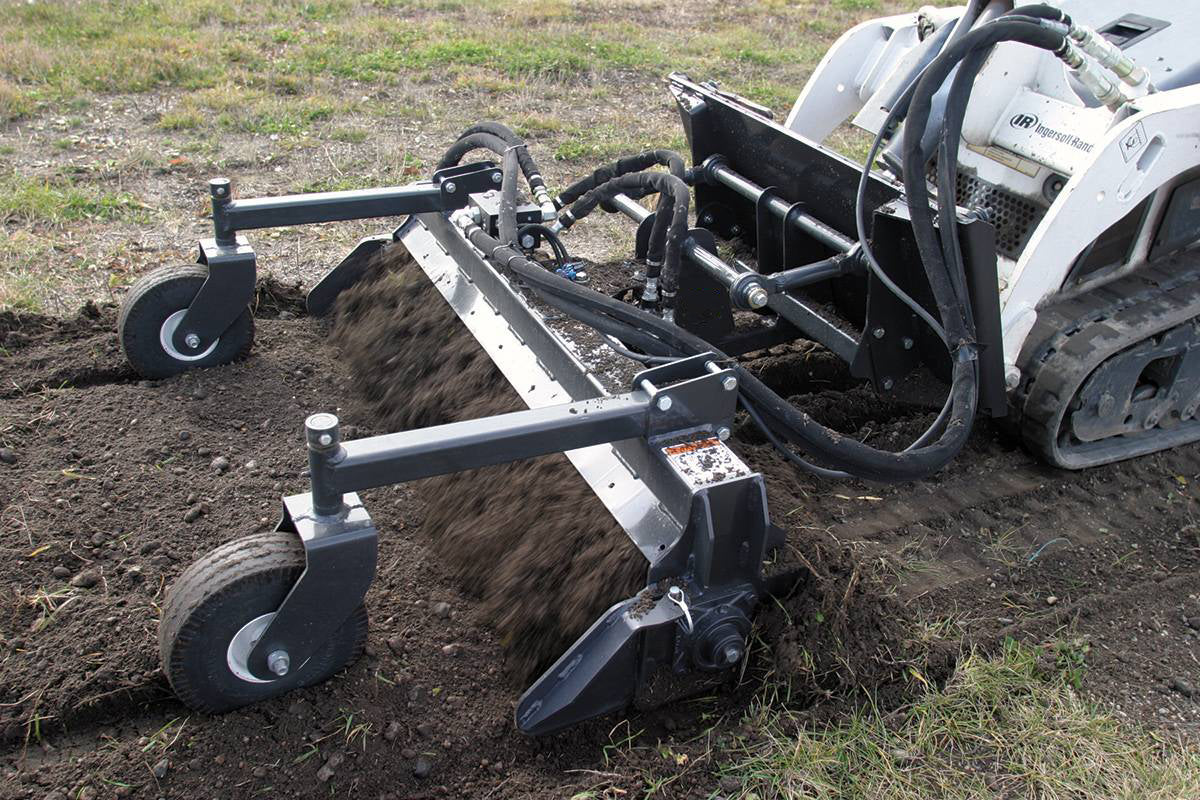

This attachment pays for itself in a very short amount of time, replacing your hand labor work crew. The versatile unit rakes stones and debris to either side or straight ahead for easy pickup. Aggressive teeth on the large diameter rotor pulverize soil like an ordinary tiller, with the benefit of faster ground speed. The counter-rotating rotor moves soil ahead of it as it tills, filling in low spots and chewing off high. It creates perfect seedbeds and windrows. The Mini Soil Conditioner separates rocks, tears up sod, and pulverizes dirt clods.
Key Features
Everything you need to get the job done right.
Largest Drum in Its Class
Features a 7-inch drum, the largest in its class, for improved efficiency and effectiveness during heavy-duty tasks.
Thick Drum Wall for Durability
3/8-inch thick drum wall provides enhanced durability, allowing it to withstand tough job site conditions.
Direct-Drive for Maximum Power
Direct-drive design ensures maximum power transfer, reducing maintenance and improving efficiency.
Float Mount for Better Performance
Float mount design allows the attachment to follow ground contours, providing even and consistent results.
Specifications
Specs tough enough
for anything
Drum Size
7"
Working Depth
0-2.5”
Teeth
Tungsten-Carbide
| 48" Rigid Mount | 48" Float Mount | 60" Rigid Mount | 60" Float Mount | |
|---|---|---|---|---|
| Part Number | 900528 | 900529 | 901574 | 901577 |
| Angled Rotor Width | 43.5" | 43.5" | 54.38" | 54.38" |
| Angling | Manual | Manual | Manual | Manual |
| Hydraulic Flow Requirements | 9-15 GPM | 9-15 GPM | 9-15 GPM | 9-15 GPM |
| Length | 55.5” | 55.5” | 55.5” | 55.5” |
| Maximum Angle Both Ways | 25° | 25° | 25° | 25° |
| Mounting Kit Configurations | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC) | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC) | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC) | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC) |
| Options | Hydraulic Power Angling Toggle Control Harness Loader Specific Wire Harness Factory Installed Couplers | Hydraulic Power Angling Toggle Control Harness Loader Specific Wire Harness Factory Installed Couplers | Hydraulic Power Angling Toggle Control Harness Loader Specific Wire Harness Factory Installed Couplers | Hydraulic Power Angling Toggle Control Harness Loader Specific Wire Harness Factory Installed Couplers |
| Overall Width | 56.75” | 56.75” | 56.75” | 56.75” |
| Weight | 385 lb. | 420 lb. | 440 lb. | 475 lb. |
| Working Depth | 0-2.5” | 0-2.5” | 0-2.5” | 0-2.5” |
| Working Width | 48” | 48” | 60” | 60” |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
