Clean Sweep HD™
Up To 84”
Width
Dual Casters
for Consistent Pressure
Reversible and Replaceable
Cutting Edge
Introduction
Clean the most dirty jobs with ease.

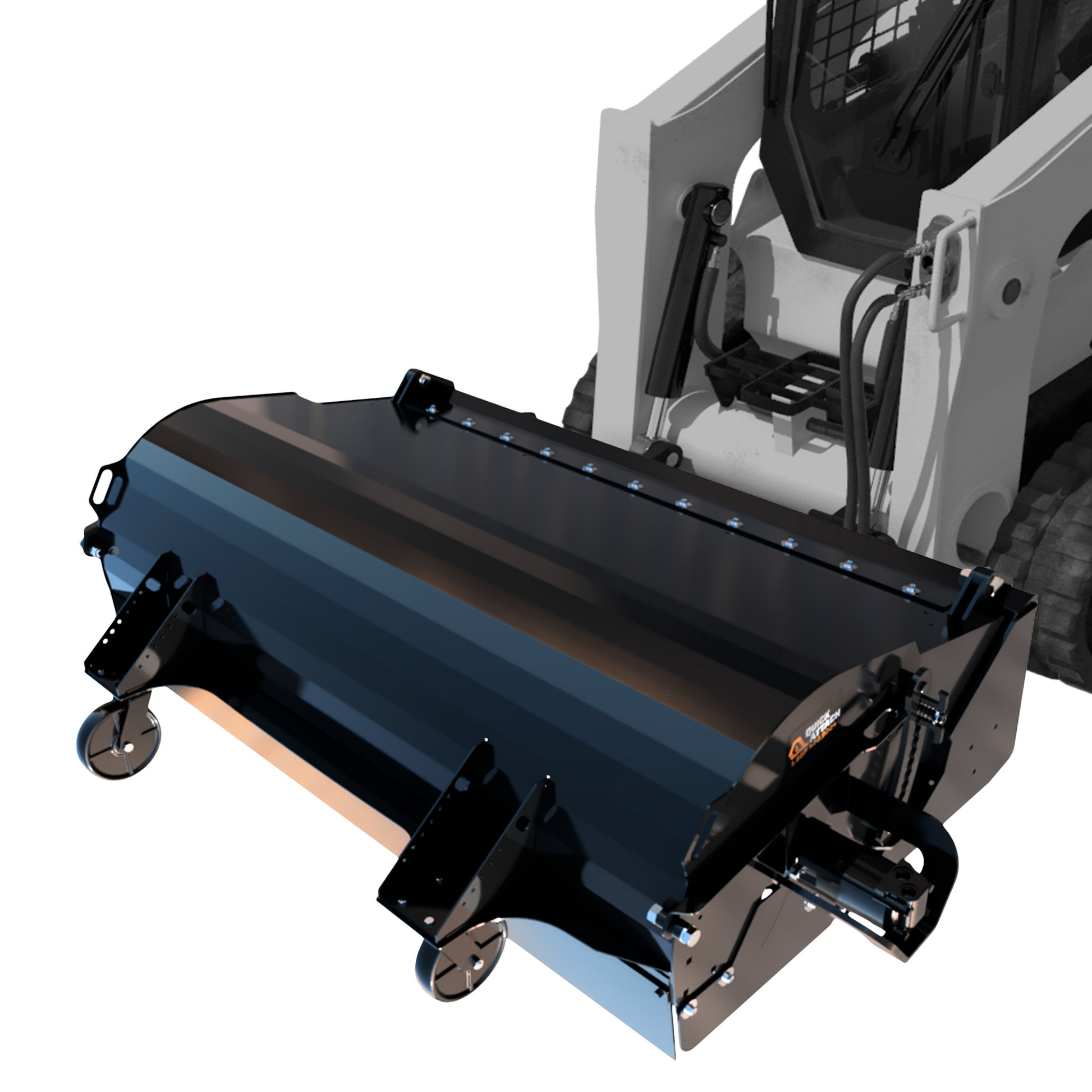

Sweep, clean and scrape mud going forward or in reverse. Ideal for construction, industrial or municipal jobs, the Clean Sweep HD™ Pick-Up Broom is easy to attach and simple to operate on your skid steer. The reversible cutting edge helps cut loose caked-on mud, while the sweeper’s poly bristles deposit dirt and debris in the container which can be dumped when full.
Key Features
Everything you need to get the job done right.

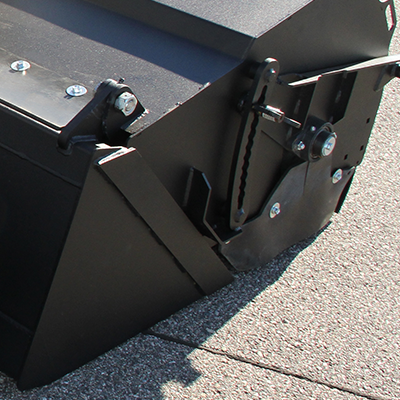

Quick-Change Arbor Adjustment with 10 Positions
The quick-change arbor adjustment offers ten positions to maximize bristle life without needing tools. Easily adjust bristle pressure and height for different surfaces, enhancing efficiency and extending bristle lifespan.
Optional Dust-Control Water Kit
An optional dust-control water kit mounts easily to the broom, suppressing dust during operation. Ideal for environments where dust containment is crucial, like construction sites or warehouses.

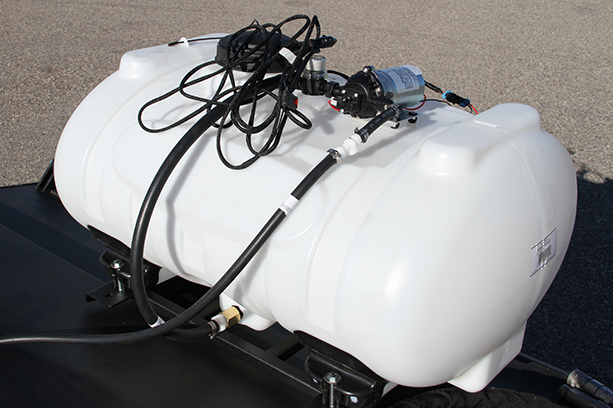

Optional 40-Gallon Tank with Self-Priming Diaphragm
For extended dust suppression, an optional 40-gallon water tank with a self-priming diaphragm pump is available. It provides a continuous water supply, reducing refills and allowing longer operation.

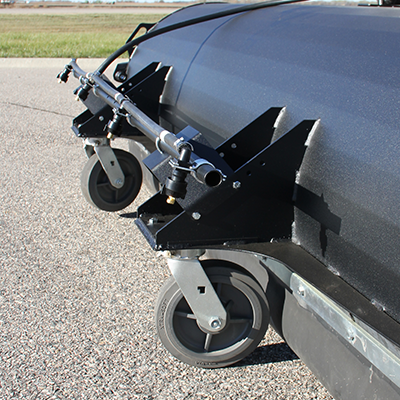

Dual Heavy-Duty Caster Wheels for Consistent Pressure
Dual heavy-duty caster wheels keep consistent pressure between the bristles and the ground. This ensures even cleaning performance and prevents uneven bristle wear.
Specifications
Specs tough enough
for anything
Width
Up To 84”
for Consistent Pressure
Dual Casters
Cutting Edge
Reversible and Replaceable
72" W Poly Steel | 72" W Poly | 84" W Poly | 84" W Poly Steel | Optional Water Kit | |
---|---|---|---|---|---|
Part Number | 901467 | 901466 | 901470 | 901471 | 350302 |
Cutting Edge | .625” x 6” | .625” x 6” | .625” x 6” | .625” x 6” | N/A |
Diameter Of Wafer | 26” | 26” | 26” | 26” | N/A |
Drive System | Direct-Drive Hyd. | Direct-Drive Hyd. | Direct-Drive Hyd. | Direct-Drive Hyd. | N/A |
Height | 25.25” | 25.25” | 25.25” | 25.25” | N/A |
Hydraulic Flow Requirements | 13-25 GPM | 13-25 GPM | 13-25 GPM | 13-25 GPM | N/A |
Optional Curb Sweeper Diameter Of Sweeper | 26” | 26” | 26” | 26” | N/A |
Optional Curb Sweeper Drive System | Direct-Drive | Direct-Drive | Direct-Drive | Direct-Drive | N/A |
Optional Curb Sweeper Shipping Weight | 200 lb. | 200 lb. | 200 lb. | 200 lb. | N/A |
Options | Water Kit Wafer Package 72" HD Poly Wafer Package 72" HD Poly/Steel Curb Sweeper Curb Sweeper Rep. Bristle Steel Curb Sweeper Rep. Bristle Poly Factory Installed Couplers | Water Kit Wafer Package 72" HD Poly Wafer Package 72" HD Poly/Steel Curb Sweeper Curb Sweeper Rep. Bristle Steel Curb Sweeper Rep. Bristle Poly Factory Installed Couplers | Water Kit Wafer Package 84" HD Poly Wafer Package 84" HD Poly/Steel Curb Sweeper Curb Sweeper Rep. Bristle Steel Curb Sweeper Rep. Bristle Poly Factory Installed Couplers | Water Kit Wafer Package 84" HD Poly Wafer Package 84" HD Poly/Steel Curb Sweeper Curb Sweeper Rep. Bristle Steel Curb Sweeper Rep. Bristle Poly Factory Installed Couplers | N/A |
Wafer Package Qty | 38 | 38 | 44 | 44 | N/A |
Weight | 960 lb. | 960 lb. | 1050 lb. | 1050 lb. | N/A |
Width | 72” | 72” | 84” | 84” | N/A |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
