Boost productivity – great for moving trees, boulders and large wood piles. With the Multi-Purpose Grapple, trees and debris can be delicately removed, repositioned, or loaded without damaging the surrounding landscape.

Roll over image to zoom in

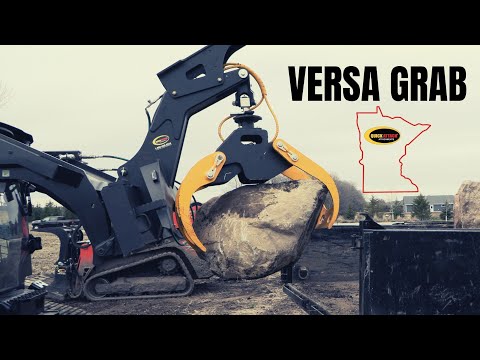

Versa Grab 3-Point Multi-Purpose Grapple

Boost productivity – Works on Both Front of Skid Steers, Tractors, and can also be mounted to the rear 3 point of tractors. Great for moving trees, boulders and large wood piles. With the Multi-Purpose Grapple, trees and debris can be delicately removed, repositioned, or loaded without damaging the surrounding landscape.

Includes skid steer mount and 3-point hitch Cat I and II
Two steel steps for traction
3-inch bore cylinder
Closes to less than 3 inches
Heavy-duty push bar
Optional hydraulic rotation
Optional winch

Model	48	60
Part Number	901315	901316
Mounting Plate	Universal, Cat I 3-Point, Cat II 3-Point	Universal, Cat I 3-Point, Cat II 3-Point
Hydraulic Pump Capacity Requirements	10 - 25 GPM	10 - 25 GPM
System Pressure	2,000 - 3,000 psi	2,000 - 3,000 psi
Maximum Jaw Opening Width	48"	60"
Minimum Jaw Closing Diameter	3"	3"
Boom and Rotator Capacity	9,000 lb.	9,000 lb.
Grapple Cylinder Bore	3"	3"
Winch Capacity (optional)	12,000 lb.	12,000 lb.
Winch Cable Length (actual / usable)	100 ’ / 85’	100 ’ / 85’
Shipping Weight (manual rotation)	1,179 lb.	1,213 lb.
Operating Weight (manual rotation)	1,129 lb.	1,183 lb.

Options
Hydraulic Rotation
Toplink Cylinder
Winch
Pistol Grip Control Harness*
Loader Specific Wire Harness*
Factory Installed Couplers
