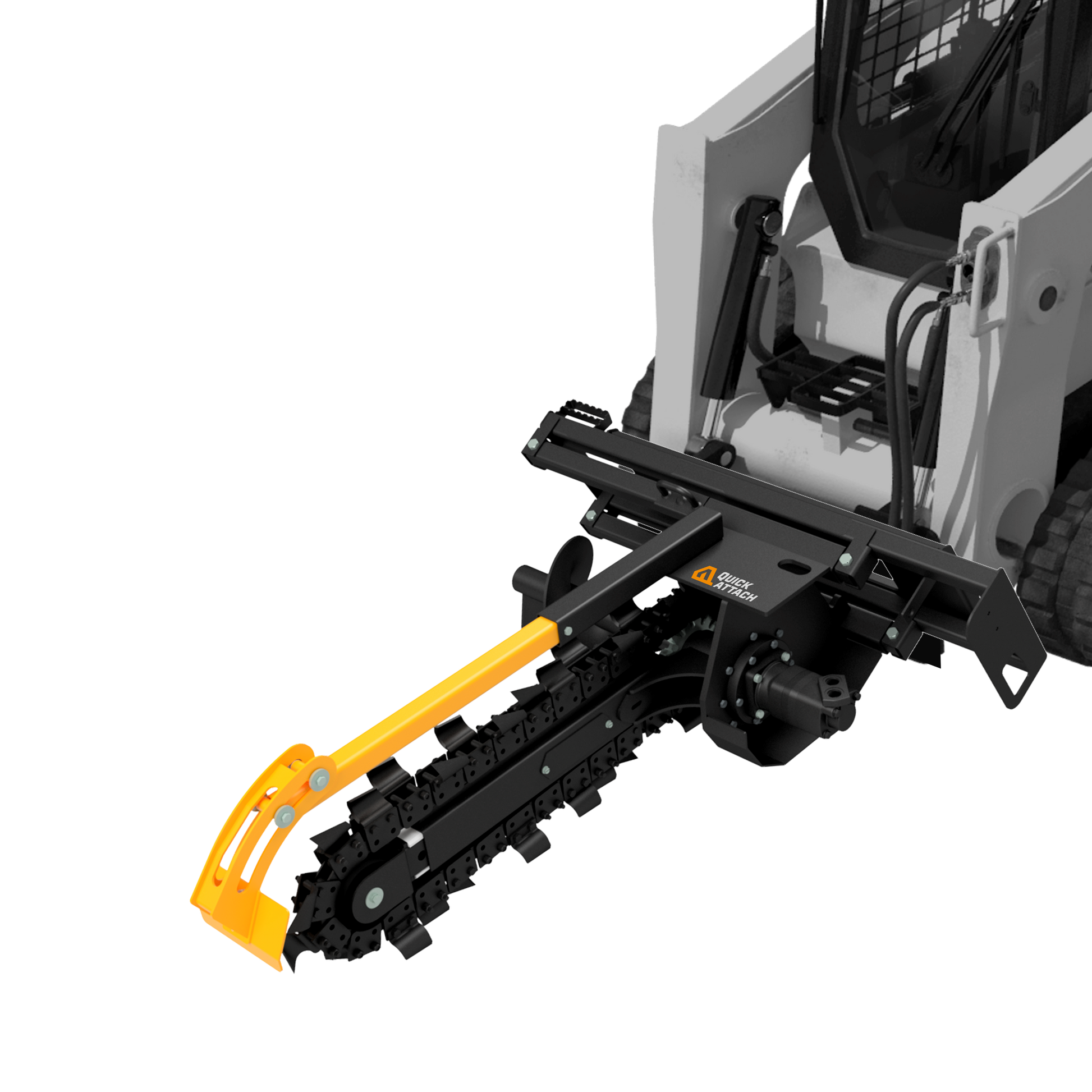

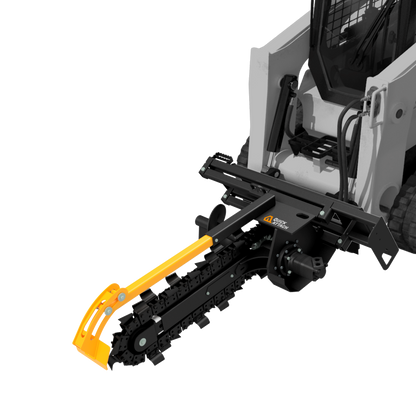

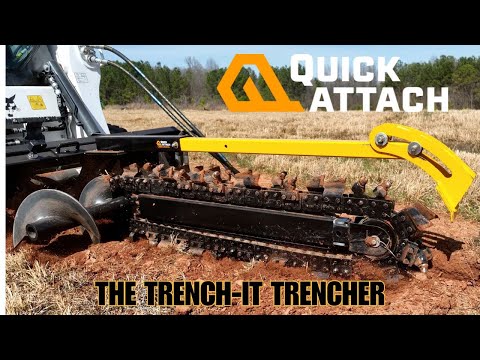

Trench-It Pro
6", 8", 10", 12"
Trencher Widths
116–202 RPM
Shaft Speed
995–2,072lb/ft
Output Torque
Introduction
Powerful performance, effortless digging.
Professional applications require the performance of our Heavy-Duty Trencher. Built for the demands of rigorous trenching jobs, this unit outperforms because of its strength and durability. Avoid costly downtime and project delays by selecting the right tool for the job!
Key Features
Everything you need to get the job done right.
Built-In Skid Shoe
Offers precise depth control for uniform drilling in various applications.
Replaceable Spoil Auger
Easy to swap out for minimal downtime and consistent performance.
Heavy-Duty Planetary Drive
Provides superior torque and durability without chain reduction.
No Case Drain Needed
Simplifies hydraulic setup and reduces potential maintenance issues.
Specifications
Specs tough enough
for anything
Trencher Widths
6", 8", 10", 12"
Shaft Speed
116–202 RPM
Output Torque
995–2,072lb/ft
TX150 | TX250 | TX350 | |
---|---|---|---|
Chain Station Counts 3 | 27 | 27 | 27 |
Chain Station Counts 4 | 33 | 33 | 33 |
Chain Station Counts 5 | N/A | N/A | 39 |
Hydraulic Flow Requirements | 15-20 GPM | 20-30 GPM | 30-45 GPM |
Operating Psi | 2,500 - 3,500 psi | 2,500 - 3,500 psi | 2,500 - 3,500 psi |
Options | 150 - 3' / 6" Double Cup - 901210 150 - 3' / 8" Double Cup - 901211 150 - 3' / 10" Double Cup - 901212 150 - 3' / 12" Double Cup - 901213 150 - 3' / 6" 50/50 Cup w/Bullet - 901214 150 - 3' / 6" 50/50 Cup w/Scorpion - 901215 150 - 3' / 6" 70/30 Cup w/Scorpion - 901216 150 - 4' / 6" Double Cup - 901217 150 - 4' / 8" Double Cup - 901218 150 - 4' / 10" Double Cup - 901219 150 - 4' / 12" Double Cup - 901220 150 - 4' / 6" 50/50 Cup w/Bullet - 901221 150 - 4' / 6" 50/50 Cup w/Scorpion - 901222 150 - 4' / 6" 70/30 Cup w/Scorpion - 901223 | 250 - 3' / 6" Double Cup - 901224 250 - 3' / 8" Double Cup - 901225 250 - 3' / 10" Double Cup - 901226 250 - 3' / 12" Doulble Cup - 901227 250 - 3' /6" 50/50 Bullet Cup - 901228 250 - 3' / 6" 50/50 Cup w/Scorpion - 901229 250 - 3' / 6" 70/30 Cup w/Scorpion - 901230 250 - 4' / 6" Double Cup - 901231 250 - 4' / 8" Double Cup - 901232 250 - 4' / 10" Double Cup - 901233 250 - 4' / 12" Double Cup - 901234 250 - 4' / 6" 50/50 Cup w/Bullet - 901235 250 - 4' / 6" 50/50 Cup w/Scorpion - 901236 250 - 4' / 6" 70/30 Cup w/Scorpion - 901237 | 901241 TX350 3’ Boom 12” Double Cup 901242 TX350 3’ Boom 6” 50/50 Cup with Bullet 901243 TX350 3’ Boom 6” 50/50 Cup with Scorpion 901244 TX350 3’ Boom 6” 70/30 Cup with Scorpion 901245 TX350 4’ Boom 6” Double Cup 901246 TX350 4’ Boom 8” Double Cup 901247 TX350 4’ Boom 10” Double Cup 901248 TX350 4’ Boom 12” Double Cup 901334 TX350 4’ Boom 6” All Bullet 901249 TX350 4’ Boom 6” 50/50 Cup with Bullet 901250 TX350 4’ Boom 6” 50/50 Cup with Scorpion 901251 TX350 4’ Boom 6” 70/30 Cup with Scorpion 901393 TX350 4’ Boom 8” 50/50 Cup with Bullet 901394 TX350 4’ Boom 8” All Bullet 901377 TX350 4’ Boom 8” 70/30 Cup with Scorpion 901385 TX350 4’ Boom 12” 50/50 Cup w/Bullet 901252 TX350 5’ Boom 6” Double Cup 901386 TX350 5’ Boom 8” Double Cup 901379 TX350 5’ Boom 10” Double Cup 901253 TX350 5’ Boom 6” 50/50 Cup with Bullet 901427 TX350 5’ Boom 6” All Bullet 901254 TX350 5’ Boom 6” 50/50 Cup with Scorpion 901255 TX350 5’ Boom 6” 70/30 Cup with Scorpion 901362 TX350 5’ Boom 10” 50/50 Cup with Bullet |
Output Torgue | 995-1,393 ft-lb | 1,219-1,706 ft-lb | 1,480-2,072 ft-lb |
Shaft Speed | 116-146 RPM | 120-170 RPM | 155 - 202 RPM |
Side Shift | Manual | Manual | Manual |
Trencher Widths | 6",8",10"12" | 6",8",10"12" | 6",8",10"12" |
Weight 3 6 Double Cup | 1,095 lb. | 1,105 lb. | 1,195 lb. |
Weight 4 6 Double Cup | 1,160 lb. | 1,170 lb. | 1,270 lb. |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
