Tree Jack-Tree Spade
Tree
Jack
Up to 40”
Root Ball Diameter
Up to 30”
Root Ball Depth
5-25 GPM
Hydraulic Flow
Introduction
Transplant trees with ease.

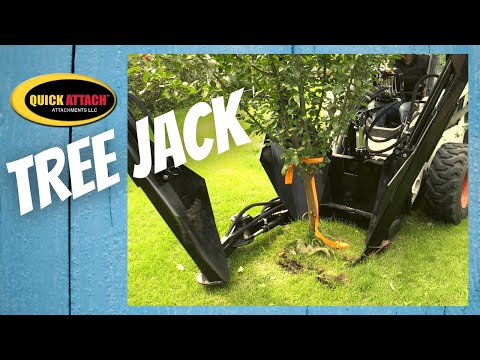

Turn your skid loader into a high-speed, labor-saving transplanting unit. A tree can be dug or transplanted without the operator having to leave the loader. The spade is designed with a very short frame, reducing the need for stabilizers and counterweights. The blades of the tree spade overlap to ensure clean root cutting and support of the root ball.
Key Features
Everything you need to get the job done right.
Transplant Without Leaving the Cab
Dig or transplant trees without leaving the loader, increasing efficiency and operator safety.
Ready to Use with All Hydraulic Components
Comes fully assembled with hydraulic hoses, couplers, and controls for quick and easy setup.
Transplants Hardwood Trees up to 2 1/2” and Evergreens up to 3”
Handles hardwoods up to 2 1/2 inches and evergreens up to 3 inches in diameter, ideal for diverse transplanting needs.
3/8” Thick Steel Cutting Blades
Three durable 3/8-inch steel blades cut through roots and soil with precision and strength.
Specifications
Specs tough enough
for anything
Root Ball Diameter
Up to 40”
Root Ball Depth
Up to 30”
Hydraulic Flow
5-25 GPM
| 3S | 4S | |
|---|---|---|
| Part Number | 901165 | 901166 |
| Blade Angle Side Angle | 25° | 25° |
| Blade Thickness | 3/8” A36 Steel | 1/4” Grade 50 Steel |
| Blade Truncation | Semi | Full |
| Hydraulic Flow Requirements | 5-25 GPM @ 2,500 psi | 5-25 GPM @ 2,500 psi |
| Hydraulic Remotes | 1 | 1 |
| Length Bottom Top | 52” / 76” | 61” / 76” |
| Number Of Blades | 3 | 4 |
| Operator Controls | Hydraulic | Hydraulic |
| Options | External Control (wired) External Control (wireless) Factory Installed Couplers | External Control (wired) External Control (wireless) Factory Installed Couplers |
| Outside Towers Swing Open | Yes | Yes |
| Root Ball Depth | 29” | 30” |
| Root Ball Diameter | 30” | 40” |
| Shipping Weight | 1,500 lb. | 1,900 lb. |
| Slides | Steel | Steel |
| Tree Size Evergreen | 3” | 4” |
| Tree Size Hardwood | 2.5” | 3” |
| Weight With Root Ball | 2,000 lb. | 3,100 lb. |
| Width Bottom Top | 46” / 84” | 62” / 78” |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
Manufacturing
Proudly made right here in the USA
