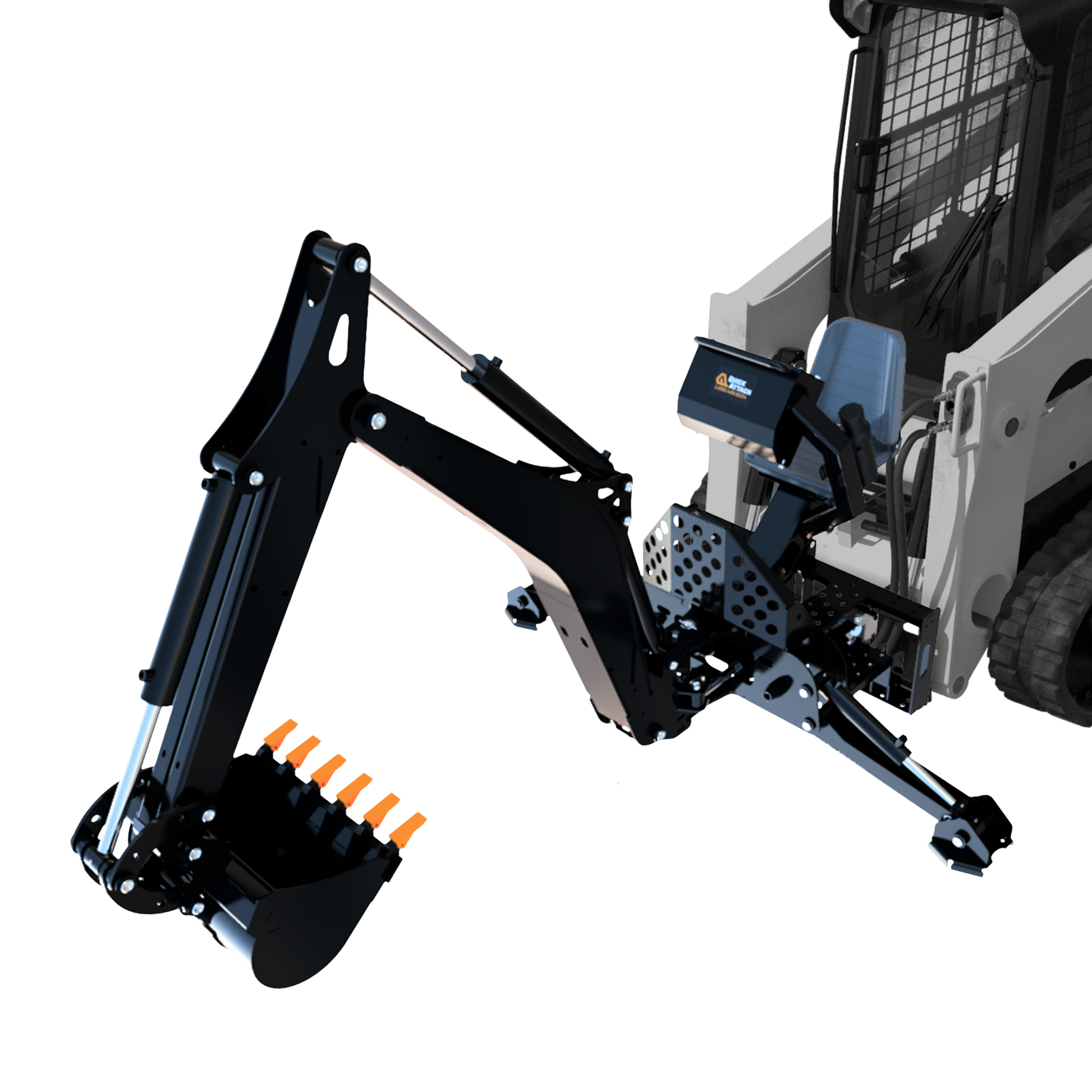

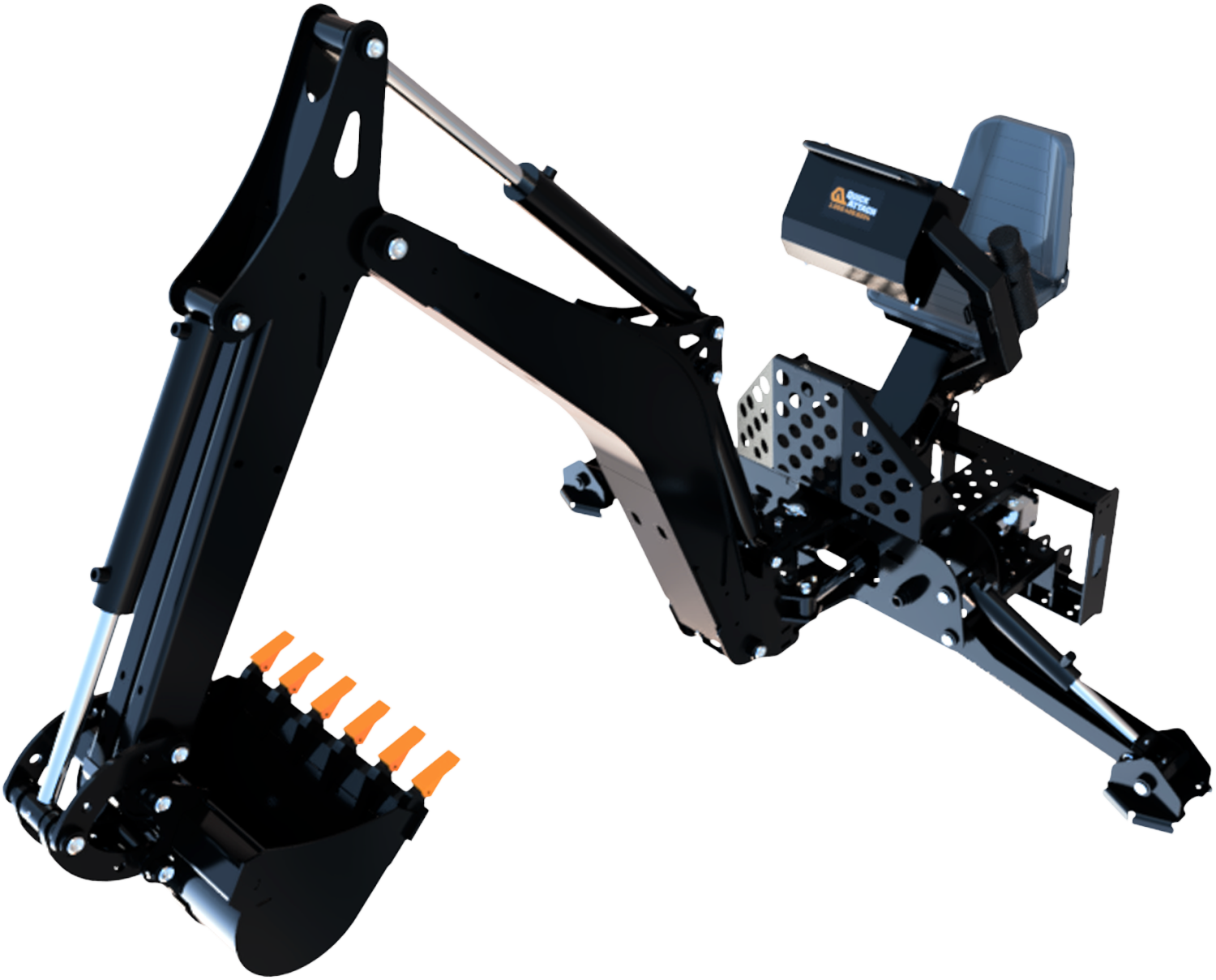

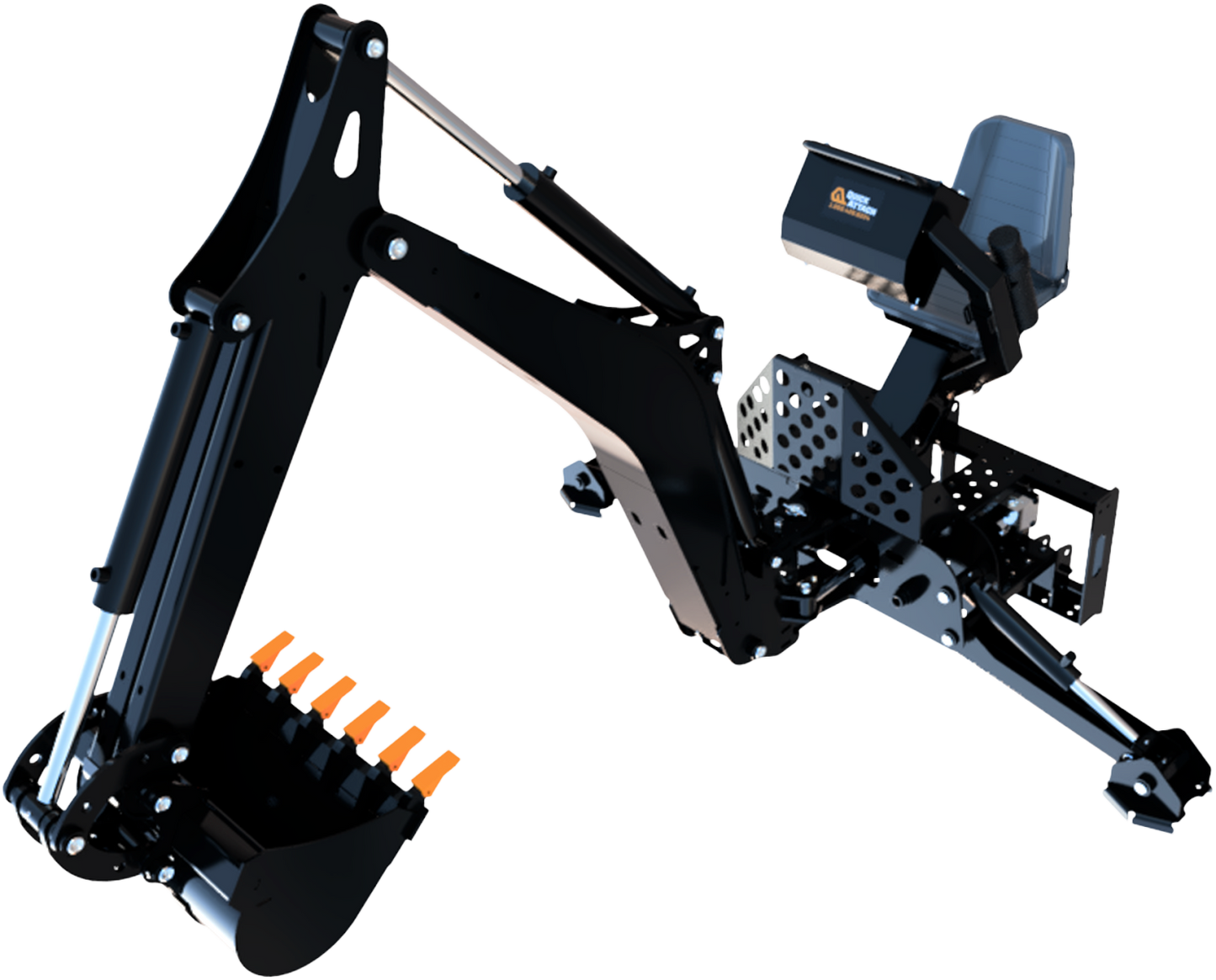

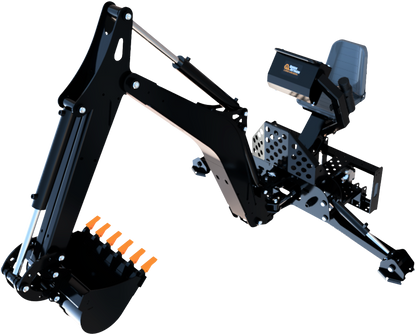

Quick Xcavator Backhoe
Quick
Xcavator
Backhoe
180°
Bucket Rotation
180°
Swing Arc
2,250 psi
Operating Pressure
Introduction
This backhoe turns mountains into molehills.
The versatile curved-boom backhoe attachment fits your machine and your property. This is a rugged backhoe that’s ready to sink its teeth into any task you give it, from landscaping to concrete footings. The responsive controls give you precision and power at your fingertips. Running deep with features, the backhoe will turn a mountain of a job into a molehill.
Key Features
Everything you need to get the job done right.
Swiveling Operator Seat
Enhances visibility of the work area for improved precision and safety.
Efficient Hydraulic System
Operates at 5–7 GPM for reliable power and smooth performance.
Dual Cylinder Swing
Provides maximum swinging power and stability for efficient operation.
Greaseable Pivot Points
All main pivot points are greaseable, featuring replaceable bronze bushings for easy maintenance.
Specifications
Specs tough enough
for anything
Bucket Rotation
180°
Swing Arc
180°
Operating Pressure
2,250 psi
| BH780 | BH1080 | |
|---|---|---|
| Part Number | 901072 | 901073 |
| All Other Cylinder Diameter | Dipper 2.25”, Rest 2” | Dipper 3”, Rest 2.5” |
| Boom Lift Capacity | 515 lb. | 795 lb. |
| Bucket Digging Force Sae | 3,450 lb. | 4,055 lb. |
| Bucket Rotation | 180° | 180° |
| Digging Depth 2 Ft Flat Bottom | 78” | 108” |
| Dipper Stick Digging Force Sae | 1,890 lb. | 3,560 lb. |
| Ground Clearance | 7.5” | 9.5” |
| Hydraulic Flow Requirements | 5-7 GPM | 5-7 GPM |
| Loading Height Bucket At 60 | 63” | 89” |
| Main Boom Cylinder Diameter | 2.25” | 3” |
| Operating Pressure | 2,250 psi | 2,250 psi |
| Options | Tie Back Kit Bucket 9” Bucket 12” Bucket 15” Bucket 18” Bucket 18” Ditching Street Pads (pair) Factory Installed Couplers RH Support Valve (for Volvo, JCB, Case, New Holland, Gehl) | Tie Back Kit Bucket 9” Bucket 12” Bucket 12” Ditching Bucket 15” Bucket 18” Bucket 18” Ditching Bucket 24” Bucket 24” Ditching Street Pads (pair) Mechanical Thumb Hydraulic Thumb Factory Installed Couplers RH Support Valve (for Volvo, JCB, Case, New Holland, Gehl) |
| Overall Operating Height Fully Raised | 91” | 128” |
| Reach From Swing Post | 104” | 145” |
| Stabilizer Below Grade | 10” | 12” |
| Stabilizer Width Spread Position | 81” | 90” |
| Stablizer Width Transport | 36” | 41” |
| Swing Arc | 180° | 180° |
| Transport Height Fully Retracted | 68” | 93” |
| Transport Length | 64” | 81” |
| Transport Weight | 675 lb. | 1,200 lb. |
| Transport Width Stabilizers Up | 36” | 45” |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
Manufacturing
Proudly made right here in the USA
