Quick Tilt-Tach
Quick
Tilt-Tach
+/- 17°
Oscillation
6"
Cylinder Stroke
2
Cylinders
Introduction
Your go-to tool for precision grading.

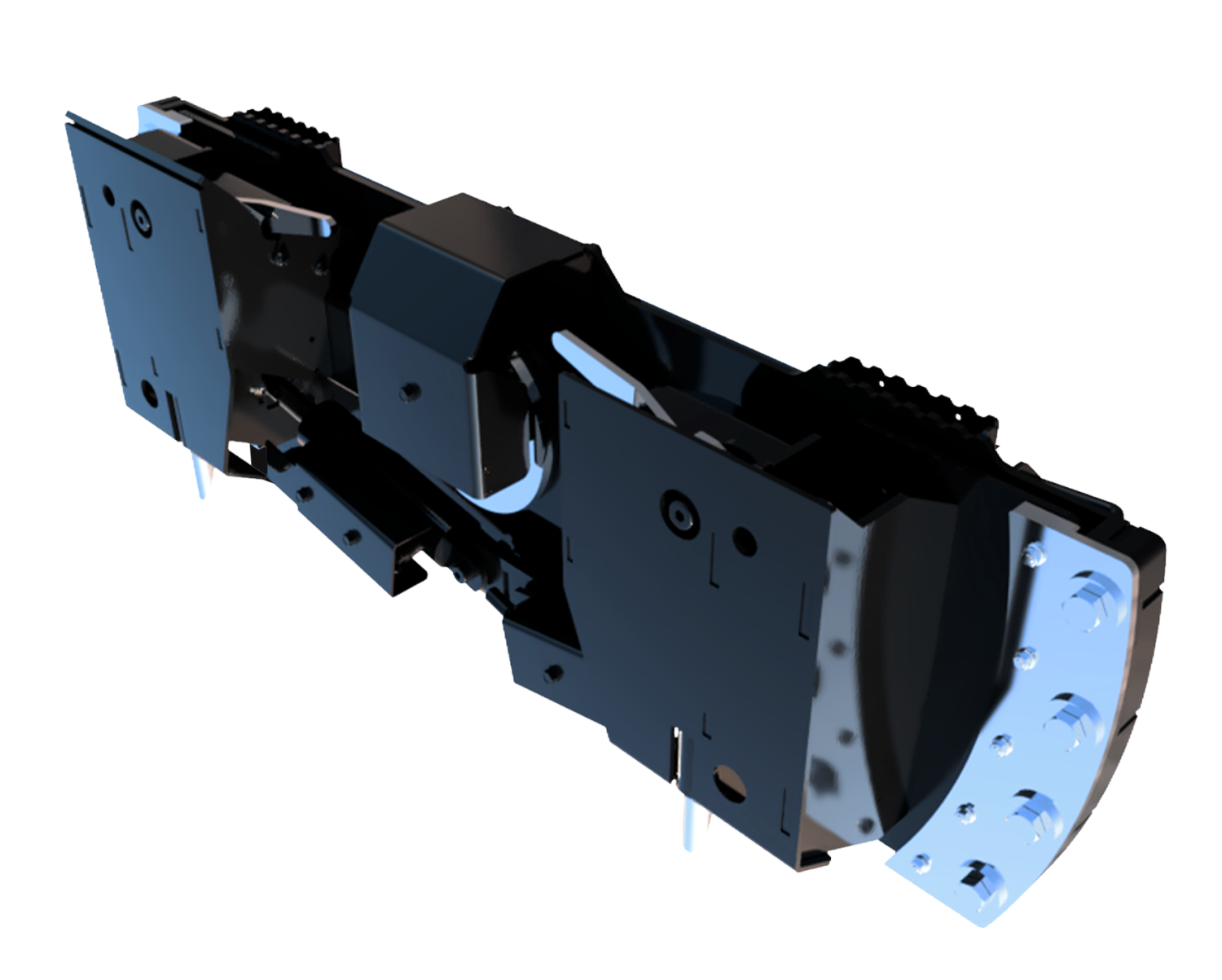

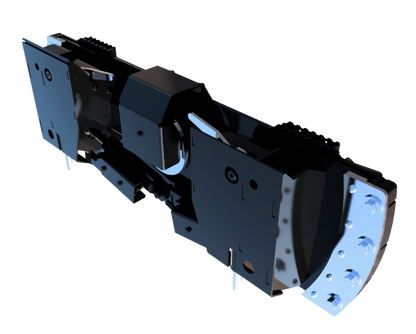

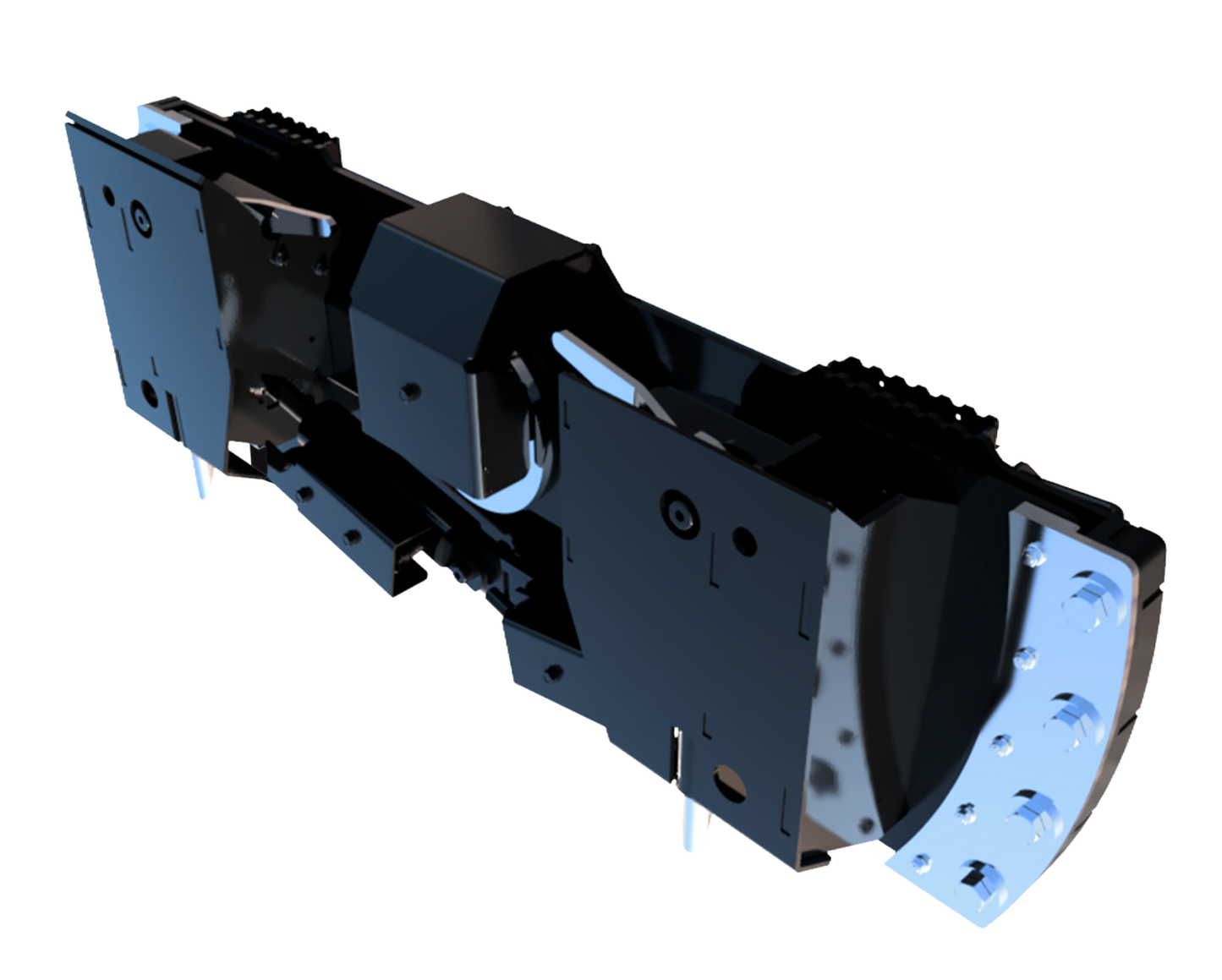

The Quick Tilt-Tach connects as an adapter between a skid steer loader’s quick attach and its attachment. Controlled from the loader seat, the Quick Tilt-Tach permits a skid steer to cut grades, ditches, and swales and keep attachments level on hilly ground. Unlike other tilt attachments, the Quick Tilt-Tach design provides the lateral stability and tilting accuracy required for smooth machine-control.
Key Features
Everything you need to get the job done right.
17° Rotation
Rotates left or right up to 17 degrees for balanced operation and precise adjustments.
Dual Cylinder Design
Ensures smooth operation and strong tilting force for enhanced control.
Laser and Sonic Compatibility
Ideal for use with laser or sonic guided systems for high-accuracy applications.
Nylon Wear Points
Replaceable nylon at wear points eliminates grease, reducing maintenance time and costs.
Specifications
Specs tough enough
for anything
Oscillation
+/- 17°
Cylinder Stroke
6"
Cylinders
2
| Quick Tilt | |
|---|---|
| Part Number | 900639 |
| Cylinders | 2 |
| Cylinder Bore | 2.5” |
| Cylinder Rod | 1.25” |
| Cylinder Stroke | 6” |
| Depth | 11.13” |
| Height | 20.9” |
| Options | Hydraulic Control Valve Kit (for secondary functions) Pistol Grip Control Harness* Loader Specific Wire Harness* Mount Frame Spacer Factory Installed Couplers *Required for optional hydraulic control valve kit |
| Oscillation | +/- 17° |
| Weight | 470 lb. |
| Width | 57.2” |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
