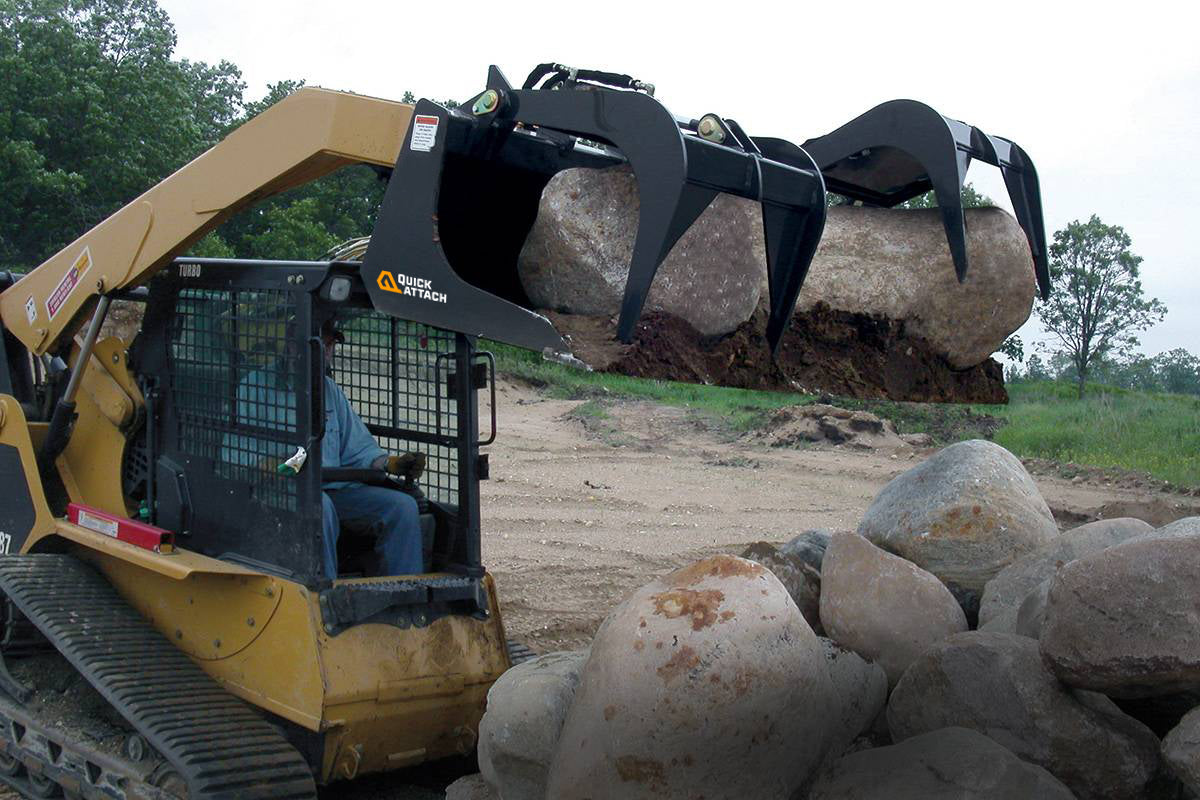

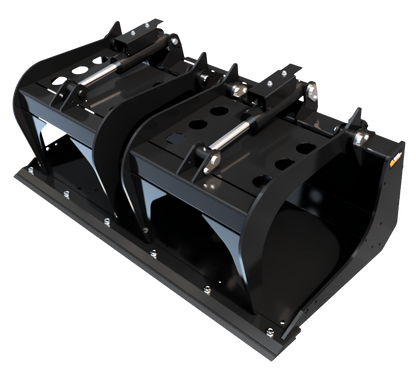

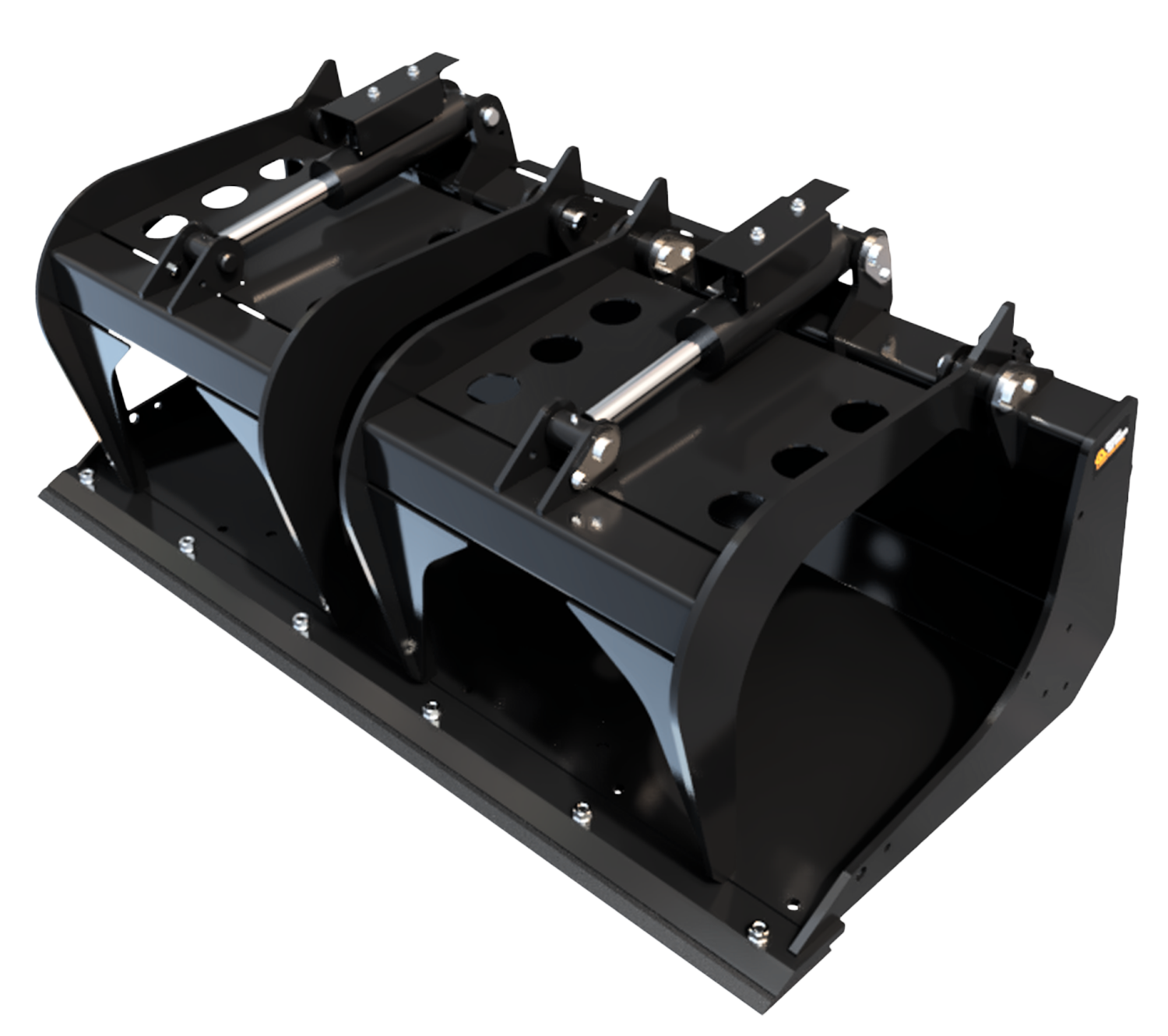

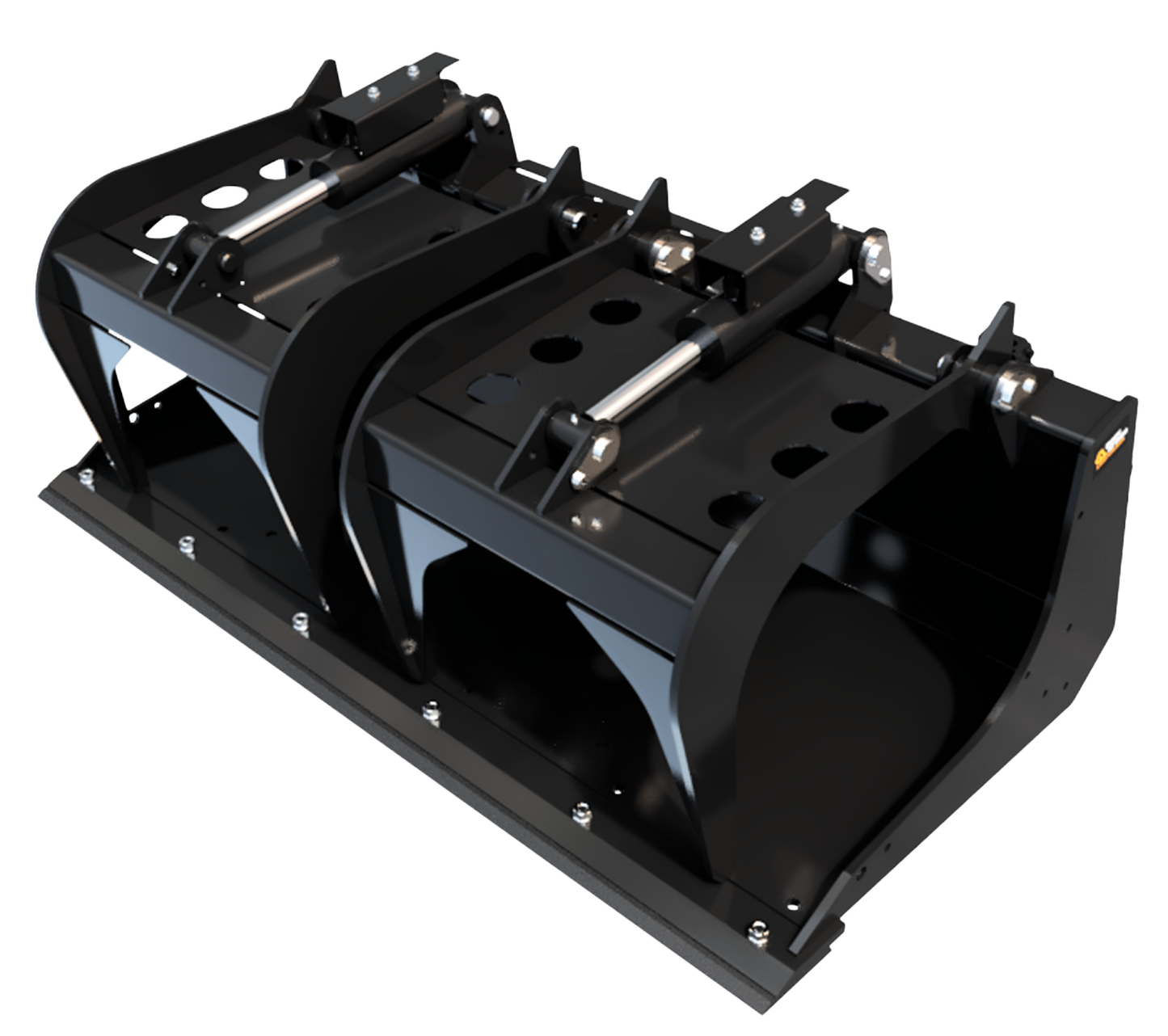

The Quick Scrape-n-Grab-Industrial Solid Bottom Grapple Bucket is a wonderful tool for moving all sorts of material and earth. Sand, dirt, rocks, mud, brush, logs, there’s really nothing that this grapple bucket can’t move. Two independent heavy-duty grapples powered by 3,000 lb. hydraulic cylinders secure uneven and odd shaped loads. Simply a great all around attachment for almost any job.
Heavy-duty tool moves difficult to handle material, such as scrap and waste, quickly and easily
Constructed of 1/2” grade 50 steel and 7 gauge material
2 - 3" 3,000 lb. cylinders
Specifications
Model
66”
72”
84”
Part Number
900611
900612
900614
Weight
930 lb.
960 lb.
1,020 lb.
Width
68”
74”
86”
Height with Teeth Open
28.19”
28.19”
28.19”
Maximum Opening
40.36”
40.36”
40.36”
Hydraulic Cylinders
3" x 6" (2)
3" x 6" (2)
3" x 6" (2)
Steel Construction of Upper Teeth
Hi-strength
Hi-strength
Hi-strength
Options
Bolt-on Cutting Edge
Bolt-on Replaceable Tooth (hardware inc.)
Teeth Bar
End Plates
Factory Installed Couplers
