Quick Push Mini
27°
Left/right angling
2
Trip Springs
1/2” x 4”
Cutting Edge
Introduction
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
Cut through the cold with confidence.

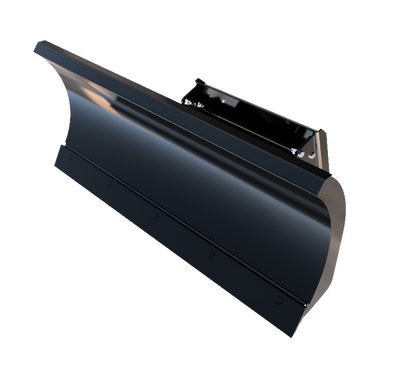

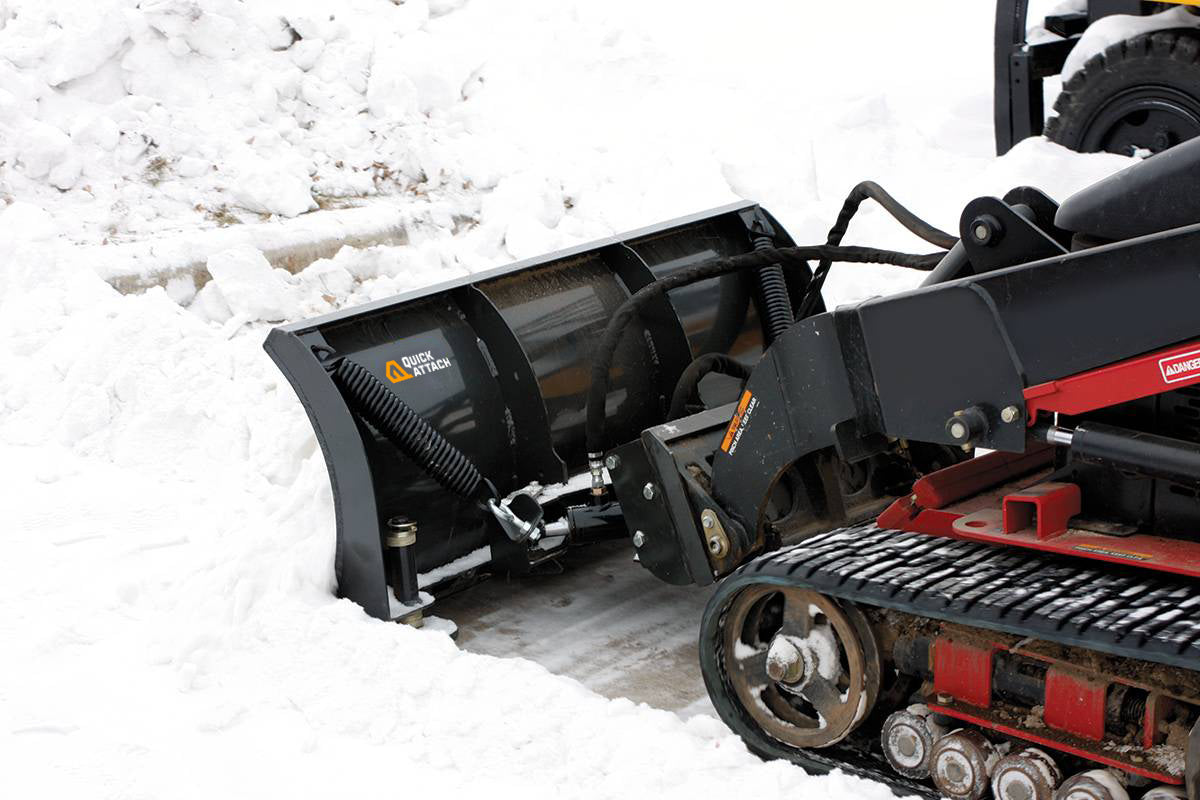

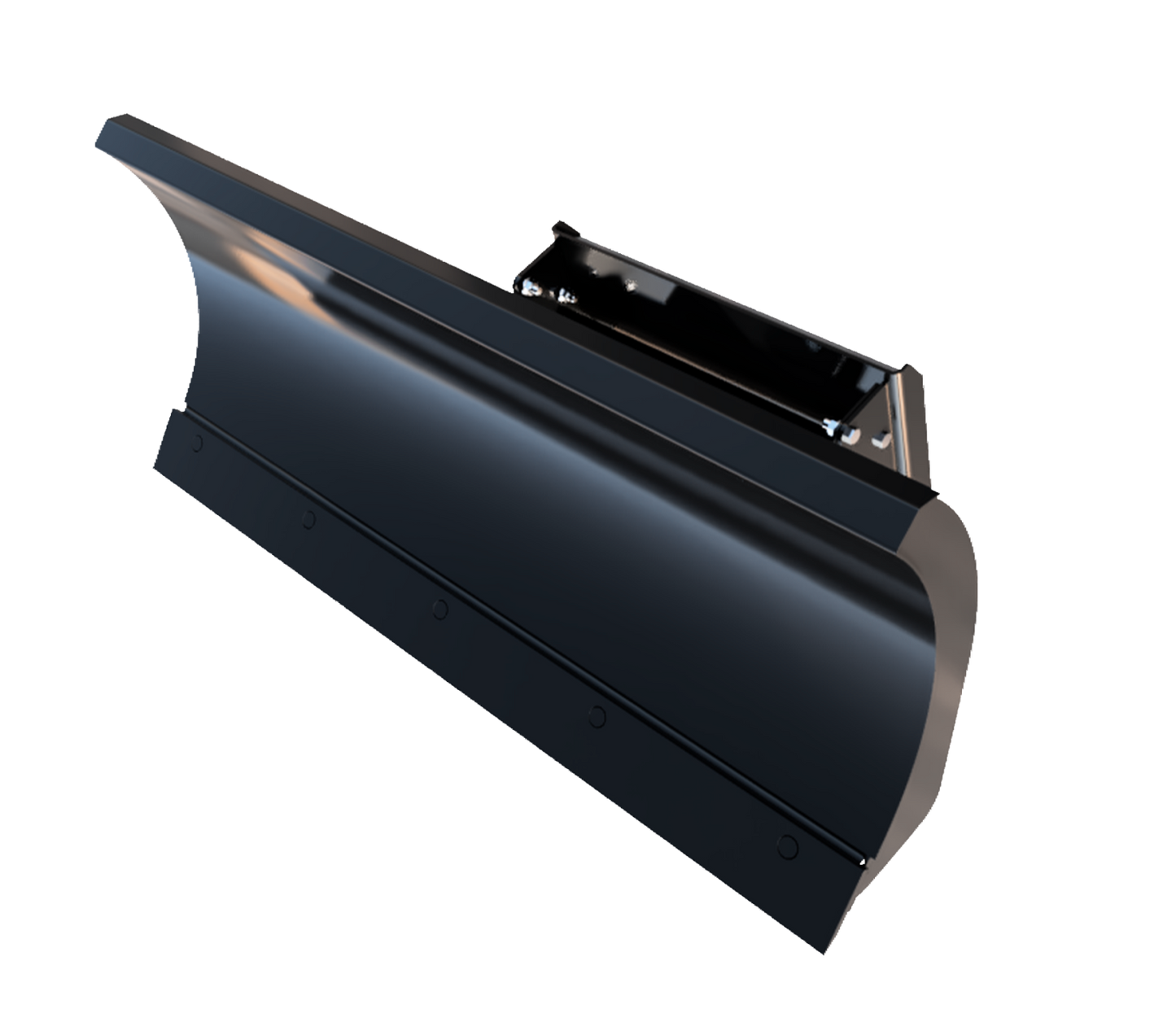

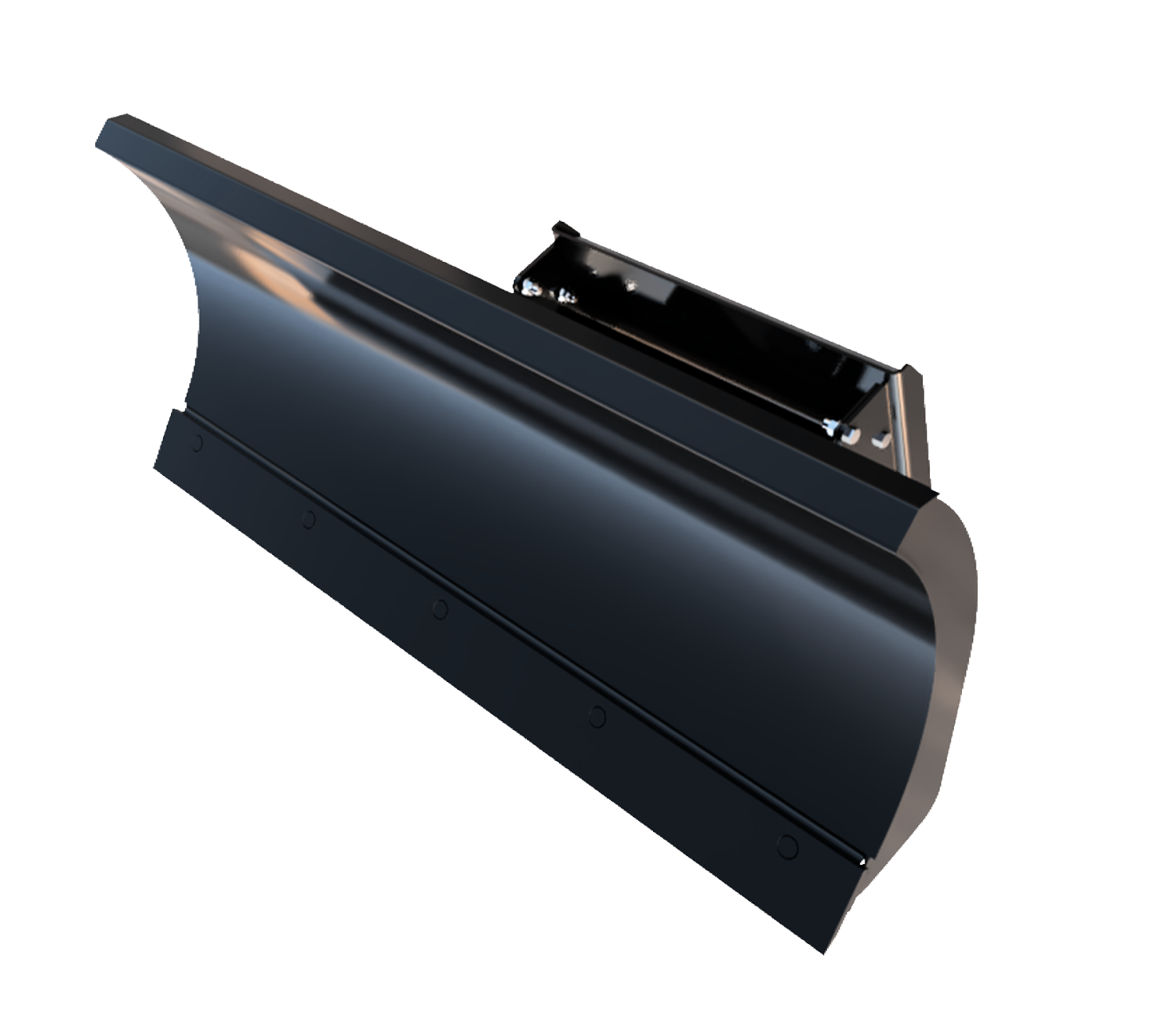

The Mini Snow / Light Material Blade is the perfect way to remove snow from walks, driveways, or parking lots. Use it in the summer for light material grading.
Key Features
Everything you need to get the job done right.
21.5” Curved Moldboard
Efficiently channels materials for improved control and maneuverability in various tasks.
High-Carbon Steel Cutting Edge
Durable and wear-resistant, ensuring long-lasting sharpness and reduced maintenance.
Dual Trip Springs
Protects components by allowing the moldboard to pivot back upon hitting obstacles.
Adjustable Depth Shoes
Easily modify cutting depth on-the-fly for versatility in grading and excavation.
Specifications
Specs tough enough
for anything
Left/right angling
27°
Trip Springs
2
Cutting Edge
1/2” x 4”
48" | 60" | |
---|---|---|
Part Number | 900338 | 900339 |
Angling | Manual | Manual |
Blade Angle Side Angle | 27° (both ways) | 27° (both ways) |
Cutting Edge | 1/2” x 4” | 1/2” x 4” |
Height | 21.5" | 21.5" |
Length | 28.25" | 28.25" |
Mounting Kit Configurations | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow) | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow) |
Options | Hydraulic Angling Package Urethane Skid Shoes Urethane Cutting Edge Rubber Cutting Edge Factory Installed Couplers | Hydraulic Angling Package Urethane Skid Shoes Urethane Cutting Edge Rubber Cutting Edge Factory Installed Couplers |
Overall Width | 49.5" | 61.5" |
Tilt Angle | 10° (both ways) | 10° (both ways) |
Trip Springs | 2 | 2 |
Trip Type | Moldboard | Moldboard |
Weight | 220 lb. | 260 lb. |
Width Fully Angled | 44.0" | 54.5" |
