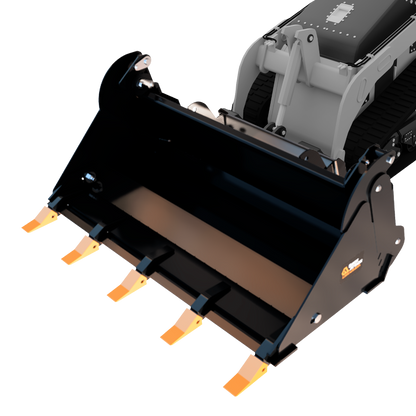

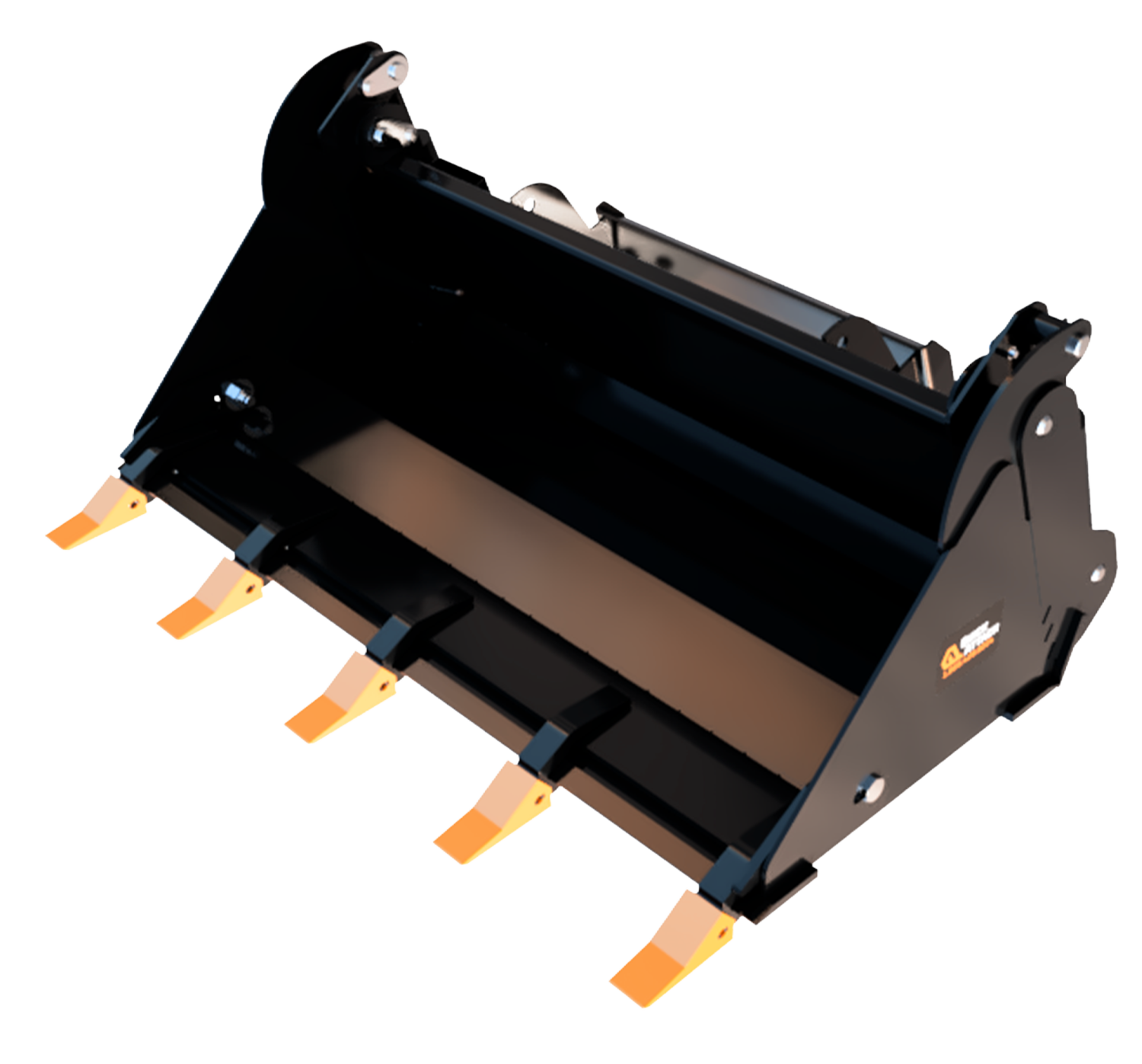

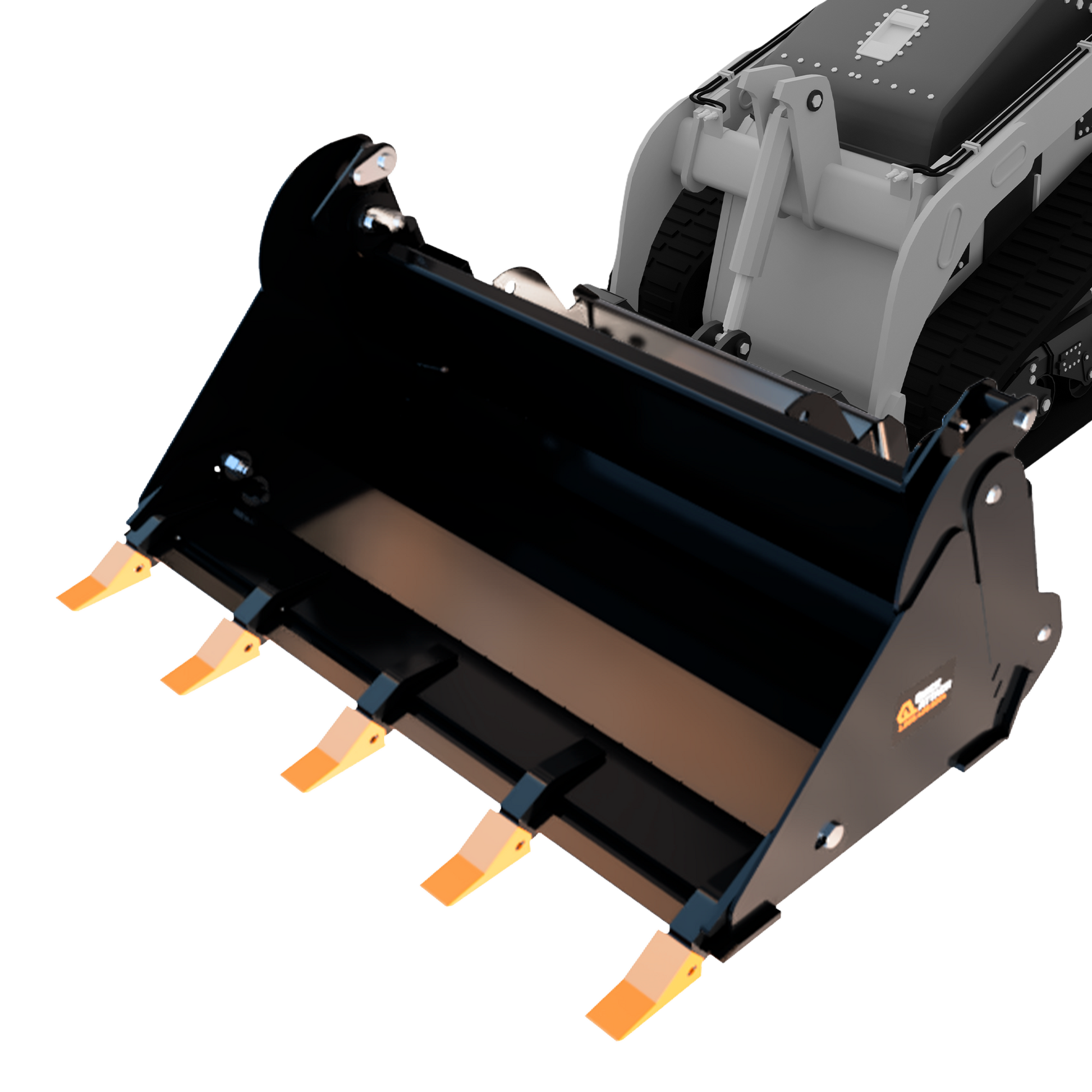

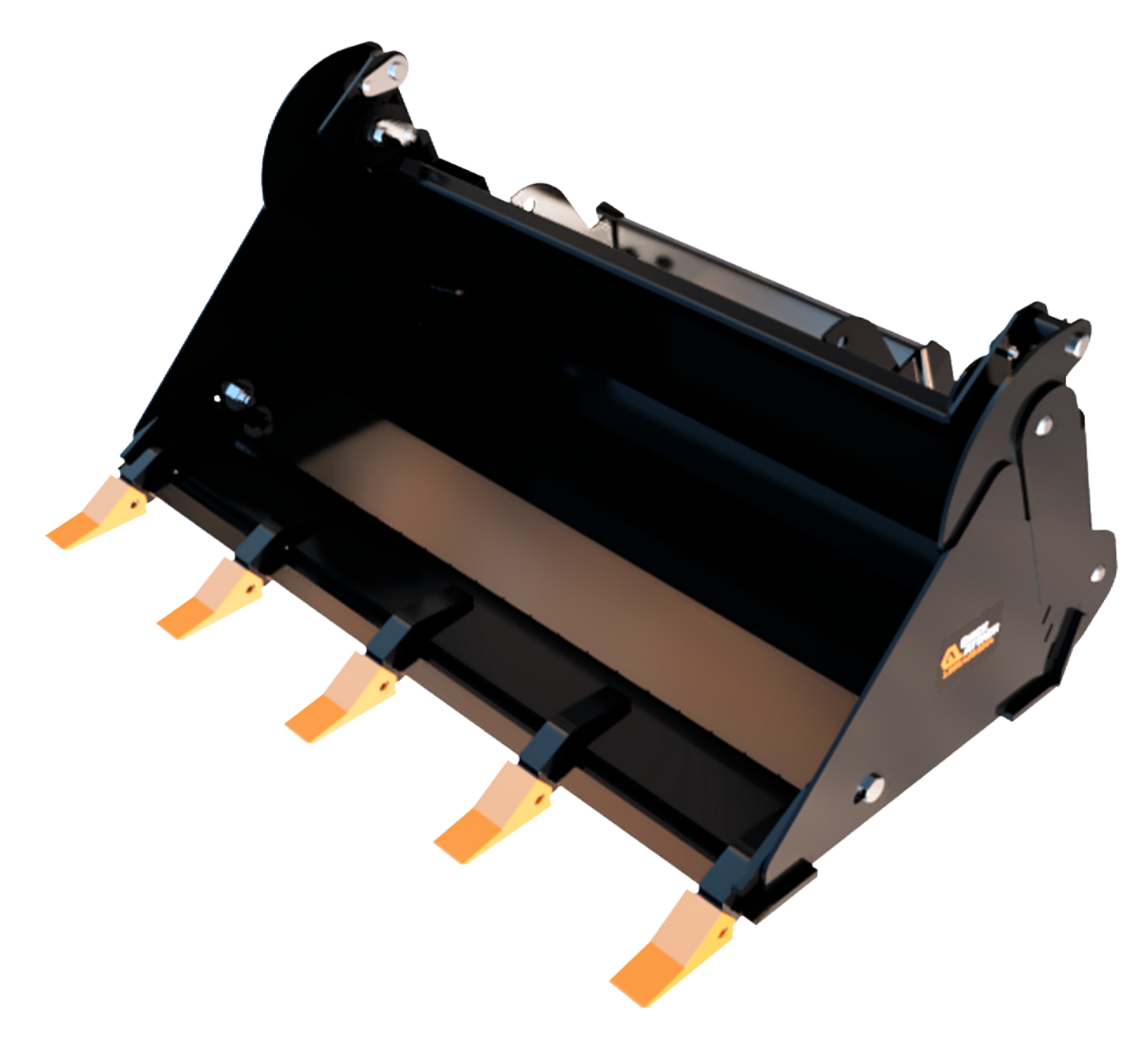

Quick Combo Bucket Mini
18.5”
Grapple Opening
3,000 psi
Hydraulic cylinders
Grade 50
steel
Introduction
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
Ready to take on any challenge.

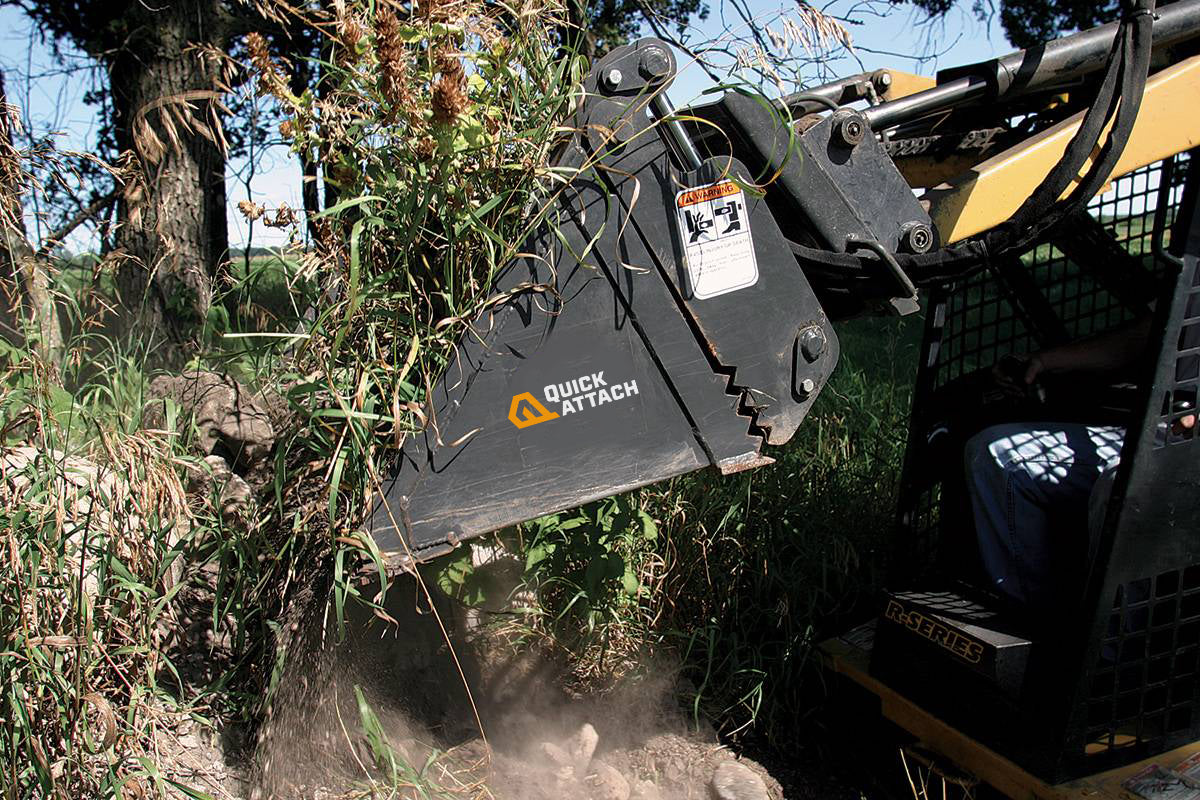

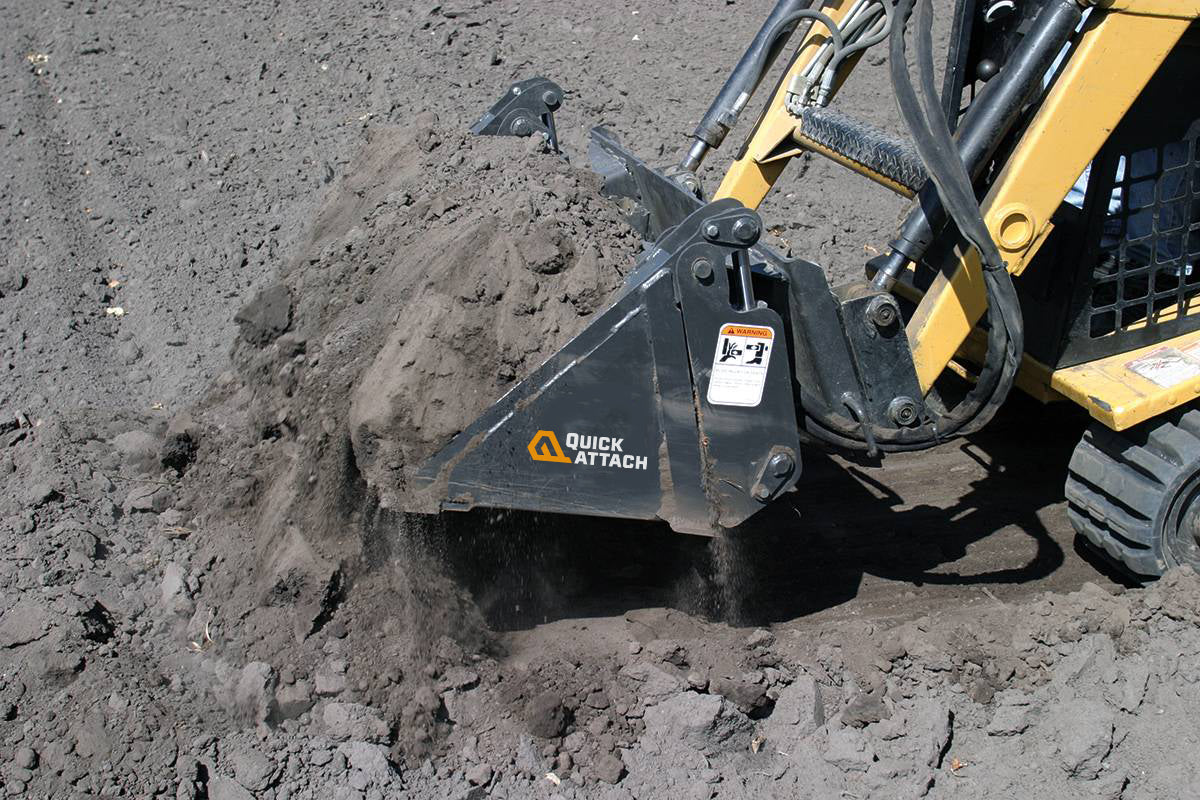

This multipurpose bucket does it all – dozing, grappling, leveling, digging, loading, and dumping. Use it on demolition, construction, landscaping and municipal jobs. Its interlocking serrated grapple edges hold objects securely, while its unique design provides optimum digging force. 2 - 3,000 psi hydraulic cylinders Grade 50 steel with side stiffeners nearly 40% stronger than regular steel Bucket bottom and clamshell are reinforced Optional bolt-on cutting edge Multitasking bucket keeps you productive Great for site cleanup, scraping, and brush removal
Key Features
Everything you need to get the job done right.
Versatile 4-in-1 Bucket
Handles dozing, grappling, leveling, digging, loading, and dumping for multiple job types.
Secure Grapple Edges

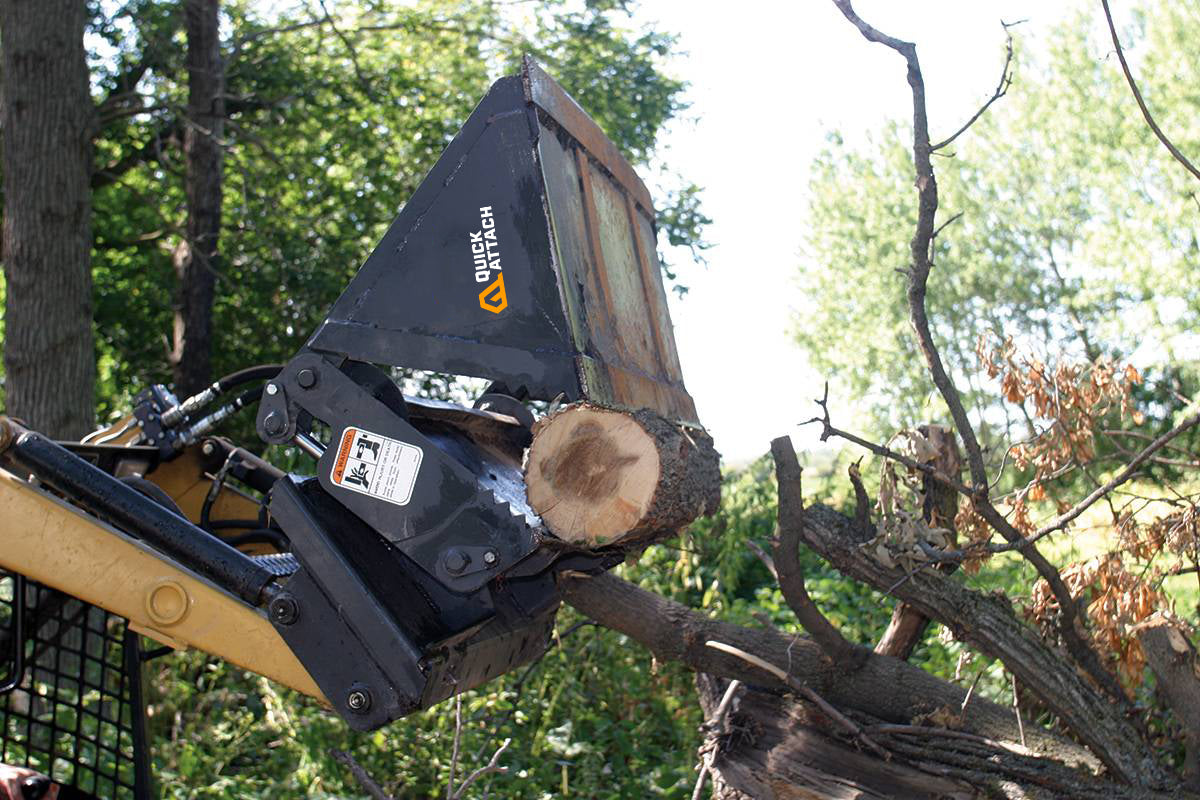

Interlocking serrated edges hold materials securely during handling.
Heavy-Duty Steel
Constructed from Grade 50 steel, nearly 40% stronger than standard steel, with reinforced sides.
Powerful Hydraulics
Equipped with two 3,000 psi hydraulic cylinders for effective clamping and grappling.
Specifications
Specs tough enough
for anything
Grapple Opening
18.5”
Hydraulic cylinders
3,000 psi
steel
Grade 50
Mini 4-In-1 | |
---|---|
Part Number | 900522 |
Capacity Struck | 4.75 ft^3 |
Cutting Edge | 3 - 1/2” x 4” |
Cylinders | 2" x 4" (2) |
Grapple Opening | 18.5” |
Height | 20.5” |
Length | 34” |
Mounting Kit Configurations | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC) |
Options | Bolt-on Cutting Edge Bolt-on Teeth Bar Factory Installed Couplers |
Overall Width | 49.5” |
Steel Thickness Bucket Body | .25” |
Weight | 330 lb. |
