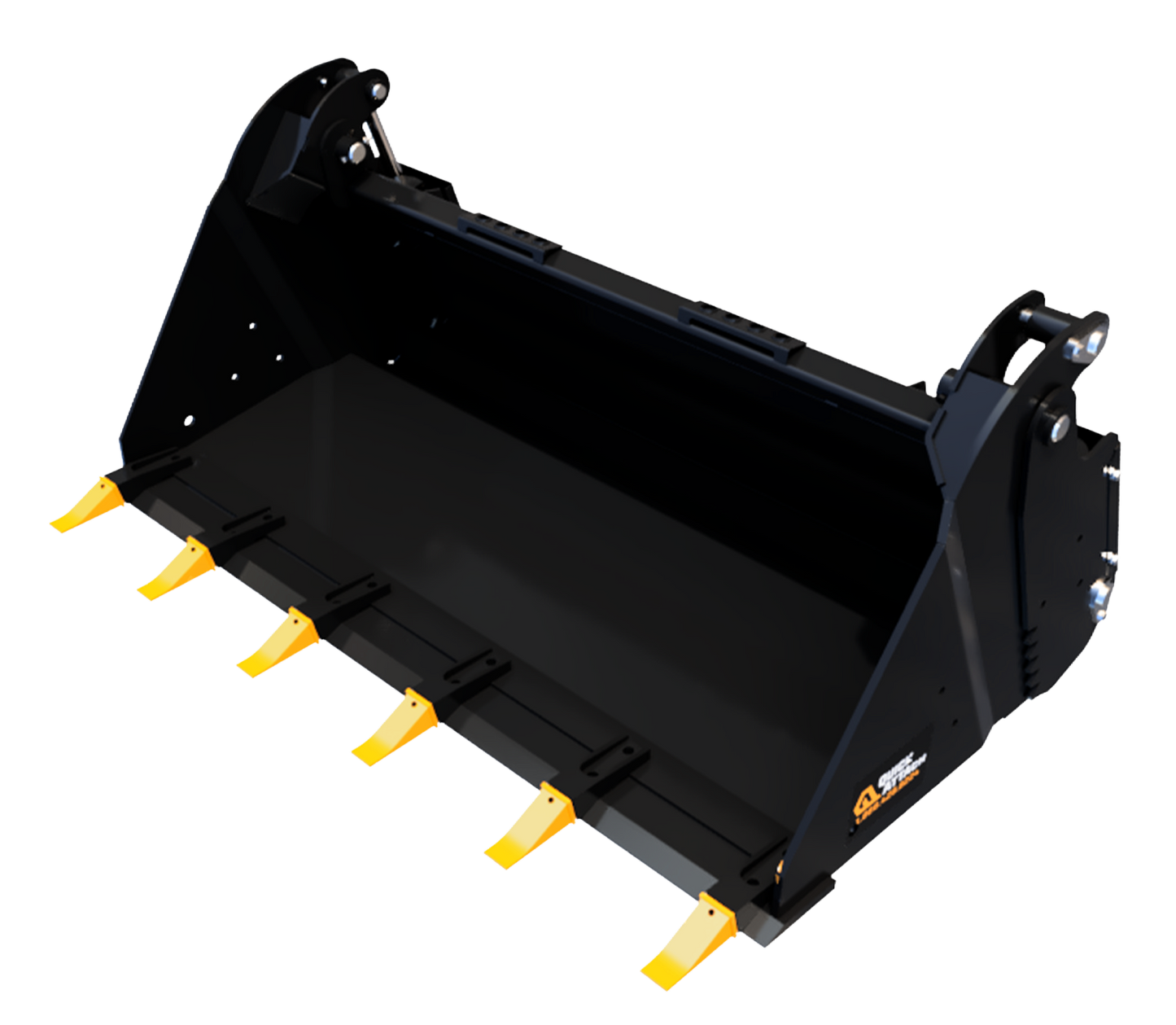

Quick Combo Bucket
Quick
Combo
Bucket
66"-80"
Widths
75”
Open Angle
.42-.59
Cubic YD.
Introduction
The Swiss Army Knife of the jobsite.

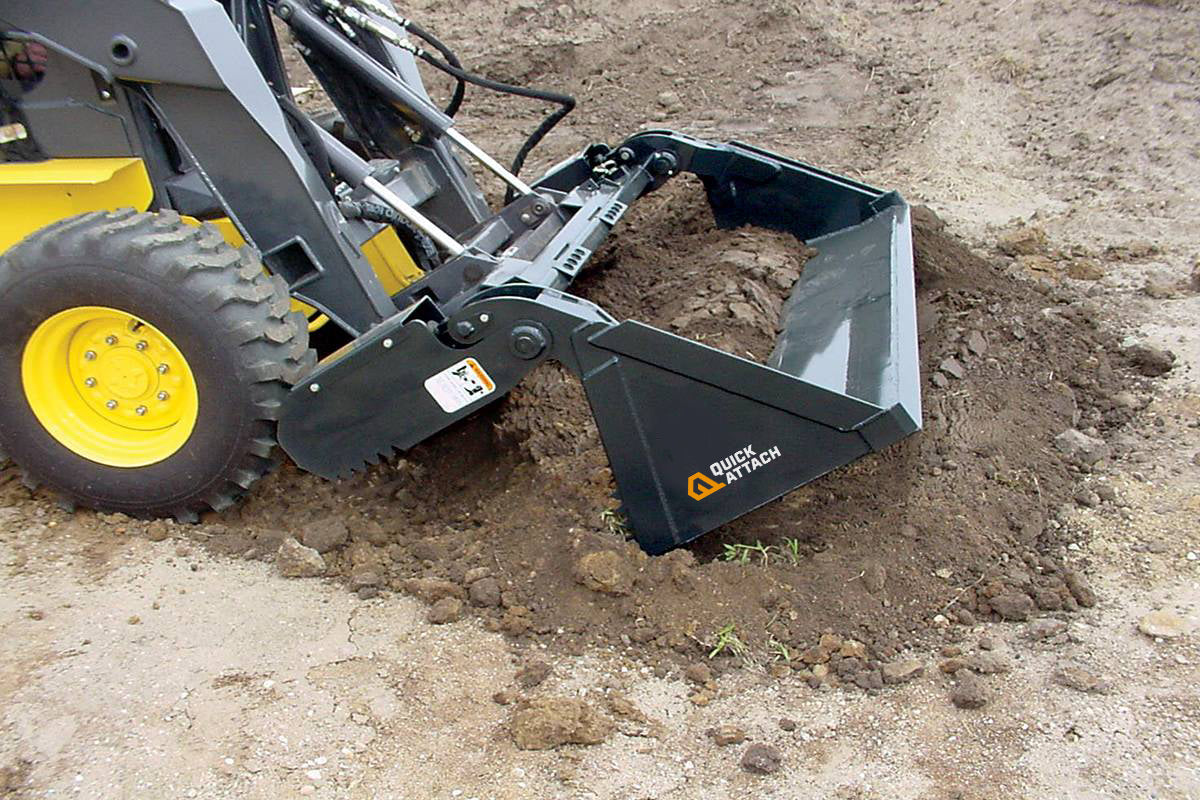

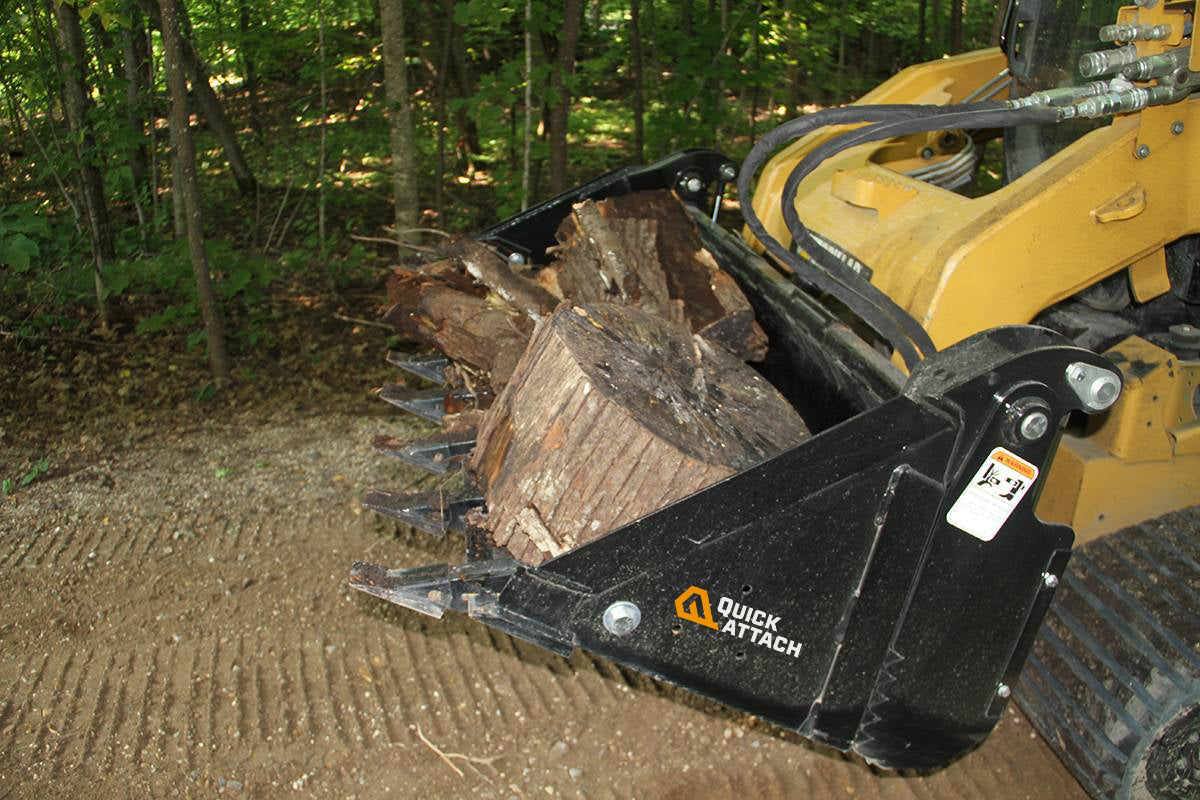

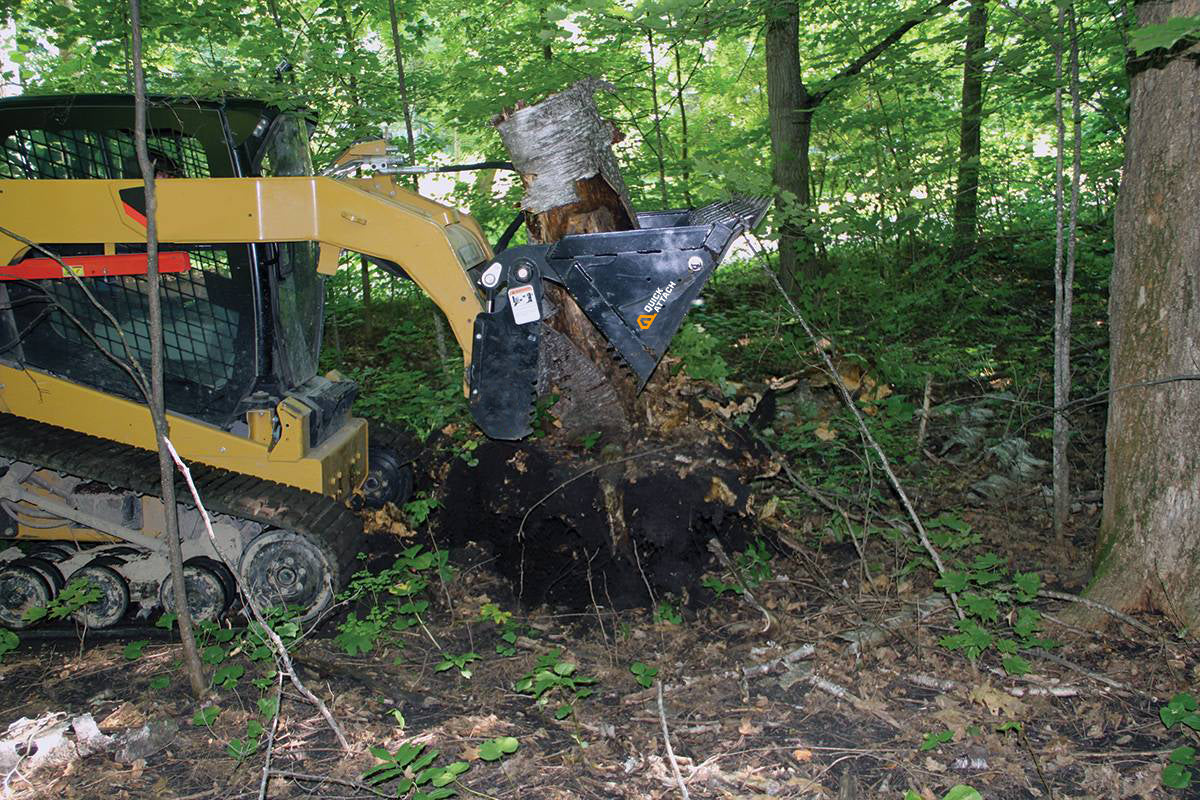

This multipurpose bucket does it all – dozing, grappling, leveling, digging, loading, and dumping. Use it on demolition, construction, landscaping and municipal jobs. Its interlocking serrated grapple edges hold objects securely while its unique design provides optimum digging force.
Make Sure to Compare Grades of Steel
Some advertise "80 plate", This is a fancy name for Grade 36 Steel. They are marketing the maximum breaking strength of Grade 36 Steel which is 80,000 PSI/KSI. At Quick Attach we advertise our steel at the minimum bending strength, not maximum breaking strength. Don't be confused by grapples stating high tensile strength steel, if the grade isn't stated it is generally a mild Grade 36.
Key Features
Everything you need to get the job done right.
Grade 50 Steel Construction
Made from Grade 50 steel, 40% stronger than Grade 36, for greater durability and handling tougher jobs.
3" Cylinders for More Gripping Force
The 3-inch cylinders provide 50% more gripping force, ensuring a stronger hold on heavy materials.
6 Features in 1 Bucket
A versatile bucket offering six functions—digging, grading, grappling, backfilling, loading, and dumping—saving time and effort.
Good Visibility to Cutting Edge
Designed for clear visibility of the cutting edge, improving precision and control in tight or delicate operations.
Specifications
Specs tough enough
for anything
Widths
66"-80"
Open Angle
75”
Cubic YD.
.42-.59
| 66" | 72" | 80" | |
|---|---|---|---|
| Part Number | 900523 | 900525 | 900527 |
| Capacity Heaped | .49 cubic yd. | .54 cubic yd. | .59 cubic yd. |
| Capacity Struck | .42 cubic yd. | .45 cubic yd. | .50 cubic yd. |
| Cutting Edge | 3/4” x 6” front (1) 1/2” x 4” rear (2) | 3/4” x 6” front (1) 1/2” x 4” rear (2) | 3/4” x 6” front (1) 1/2” x 4” rear (2) |
| Cylinders | 3" x 8" (2) | 3" x 8" (2) | 3" x 8" (2) |
| Open Angle | 75” | 75” | 75” |
| Operating Weight | 800 lb. | 840 lb. | 900 lb. |
| Options | Bolt-on Cutting Edge Bolt-on Replaceable Tooth (hardware inc.) Bolt-on Teeth Bar Mount Frame Spacer (for use with Tilt Attachment or Over-the-Tire Tracks) Factory Installed Couplers | Bolt-on Cutting Edge Bolt-on Replaceable Tooth (hardware inc.) Bolt-on Teeth Bar Mount Frame Spacer (for use with Tilt Attachment or Over-the-Tire Tracks) Factory Installed Couplers | Bolt-on Cutting Edge Bolt-on Replaceable Tooth (hardware inc.) Bolt-on Teeth Bar Mount Frame Spacer (for use with Tilt Attachment or Over-the-Tire Tracks) Factory Installed Couplers |
| Overall Width | 68” | 74” | 82” |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
