Quick Claw Mini
Quick Claw
Mini
1/2” Grade 50
Steel Teeth
3,000 PSI
Hydraulic Cylinder
36”
Maximum Opening
Introduction
Conquer Any Debris with Powerful Versatility

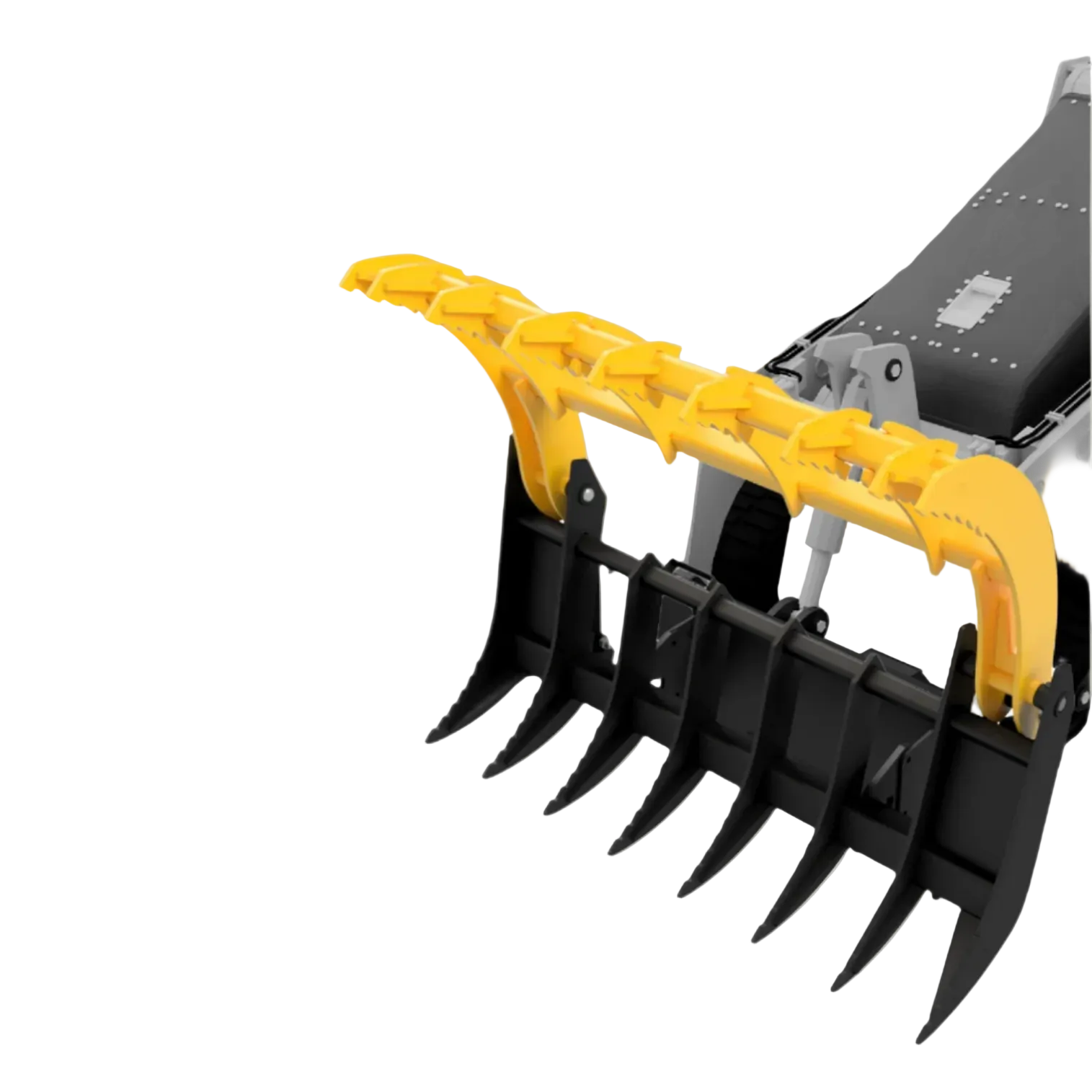

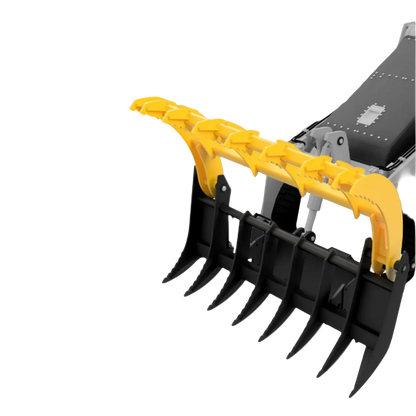

The most versatile tool in your attachment arsenal. The strength of the Mini Grapple Rake allows you to pick up a variety of debris, from logs and brush to rocks and concrete. The quality and strength of the high-strength steel used throughout gives you a grapple rake that will withstand the toughest demands. Its 36” opening and powerful jaws will close, clamp and hold virtually anything.
Key Features
Everything you need to get the job done right.
Heavy-Duty 1/2” Grade 50 Steel Teeth
Features 1/2-inch thick Grade 50 steel teeth, nearly 40% stronger than standard steel, ensuring durability when handling heavy materials.
Powerful 3,000 PSI Hydraulic Cylinder
Equipped with a single 3,000 psi hydraulic cylinder, providing strong clamping force for efficient lifting and moving of heavy loads.
Curved Teeth for Gentle Ground Interaction
Curved teeth design allows the grapple to glide over the ground, raking and cleaning surfaces without causing damage.
Versatile for Clearing Brush, Picking Rocks, and Mulching
Capable of clearing brush, picking rocks, and mulching materials, making it a versatile tool for various applications.
Specifications
Specs tough enough
for anything
Steel Teeth
1/2” Grade 50
Hydraulic Cylinder
3,000 PSI
Maximum Opening
36”
| Quick Claw Mini | |
|---|---|
| Part Number | 900303 |
| Cylinders | 2.5" x 6" |
| Grapple Teeth Lower | 8 |
| Grapple Teeth Upper | 7 |
| Height With Teeth Closed | 27” |
| Maximum Height With Teeth Open | 37.25” |
| Maximum Opening | 36” |
| Mounting Kit Configurations | ASV/Terex (RC/PT30) Bobcat (MT-52/55, 463/S70) Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Universal Mounting Plate (up to 1,000 lb. ROC) |
| Options | Factory Installed Couplers |
| Overall Width | 48.63” |
| Weight | 375 lb. |
| Width Between Teeth Average | 6.38” |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
