3-Point Power Pack
Power
Pack
25–33 GAL
Reservoir Capacity
11 Gauge Steel
Tank Construction
10 Micron
In-line Return Filter
Introduction
Hydraulic power—anytime, anywhere.

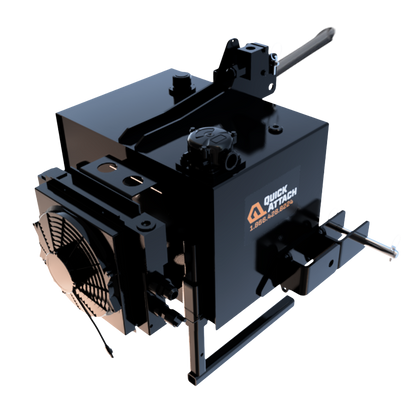

This industrial built and designed 3-point auxiliary hydraulic unit allows you to operate attachments on tractors that don’t generate enough hydraulic horsepower on their own. This self-contained unit produces enough gallons per minute allowing you to operate these hydraulically-driven attachments, thus expanding the versatility and value of your tractor loader. The hydraulic pump offers superior performance over any of our competitors because it generates higher gallons per minute and line pressure. This allows for a wider range of attachments to be used.
Key Features
Everything you need to get the job done right.
Enhanced Hydraulic Power
Boosts tractors with limited hydraulic horsepower, enabling operation of more attachments and increasing versatility.
Multiple Models for Different PTO Ranges
Four models (HP15, HP20, HP24, HP35) support tractors from 30 to 150 HP, delivering 15-35 GPM at 3,000-4,000 psi.
Durable Build
Built with an industrial gearbox, high-pressure pump, and a 25-33 gallon steel reservoir for durability and heavy-duty performance.
Efficient Filtration and Cooling
Includes a 10-micron return filter, optional high-performance oil cooler, and 15’ or 18’ hose options for flexible operation.
Specifications
Specs tough enough
for anything
Reservoir Capacity
25–33 GAL
Tank Construction
11 Gauge Steel
In-line Return Filter
10 Micron
| HP35 | HP24 | HP20 | HP15 | |
|---|---|---|---|---|
| Part Number | 920284 | 900902 | 900901 | 900900 |
| Gear Pump | High pressure | High pressure | High pressure | High pressure |
| GPM Psi | 35 @ 4,000 | 24 @ 3,000 | 20 @ 3,000 | 15 @ 3,000 |
| Hitch Category | Cat. I & II | Cat. I & II | Cat. I & II | Cat. I & II |
| In Line Return Filter | 10 micron | 10 micron | 10 micron | 10 micron |
| Options | High Performance Oil Cooler 15’ Hose* 18’ Hose* | High Performance Oil Cooler 15’ Hose* 18’ Hose* | High Performance Oil Cooler 15’ Hose* 18’ Hose* | High Performance Oil Cooler 15’ Hose* 18’ Hose* |
| Planetary Gear Box | Industrial | Industrial | Industrial | Industrial |
| Pto Speed | 540 RPM at pump | 540 RPM at pump | 540 RPM at pump | 540 RPM at pump |
| Recommended Pto Hp | 80-150 HP | 54-75 HP | 44-53 HP | 30-43 HP |
| Reservoir Capacity | 33 gallons | 25 gallons | 25 gallons | 25 gallons |
| Tank Construction | 11 gauge steel | 11 gauge steel | 11 gauge steel | 11 gauge steel |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
