Power Lift-n-Stack
5,500 lb
Capacity at 24” Load Center
48", 60"
Fork Lengths
42.75"
Maximum Fork Width
Introduction
Built to lift, designed to last.

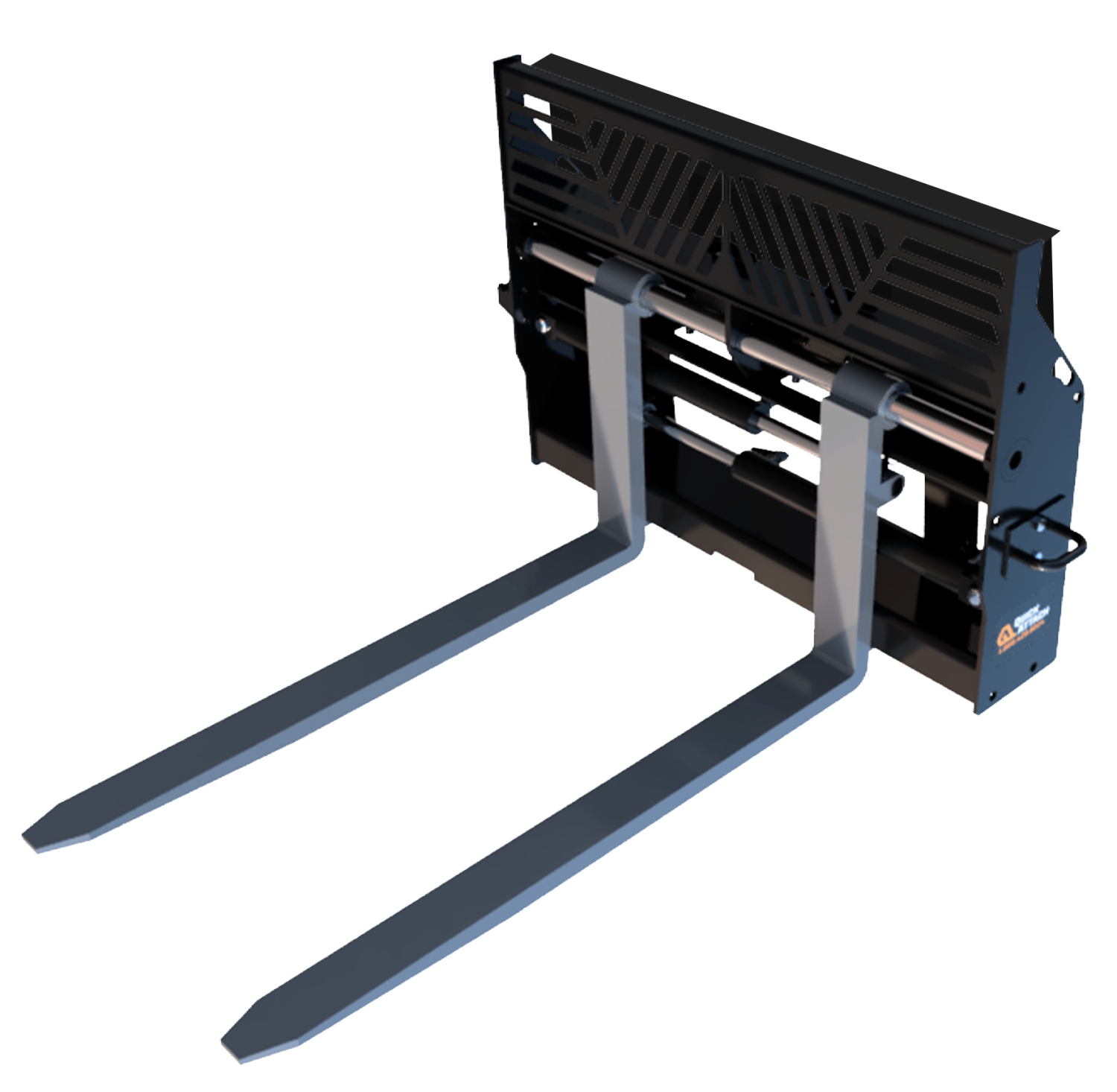

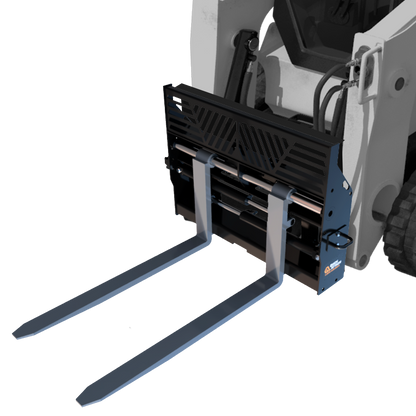

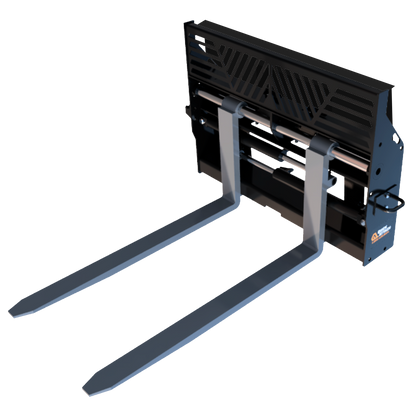

The Hydraulic Pallet Forks use hydraulic power to adjust the width between forks without leaving the operator’s seat. Available with 48” or 60” forks with load ratings of 5,500 lbs at 24”.
Key Features
Everything you need to get the job done right.
Simultaneous Fork Movement
Forks move in and out simultaneously for efficient loading and unloading, enhancing productivity on the job site.
Easy Access Bolt-On Steps
Bolt-on steps provide safe and convenient entry and exit from the skid steer, improving operator comfort.
Two Size Options
Available in 48-inch and 60-inch models, offering versatility to suit various load handling needs.
Specifications
Specs tough enough
for anything
Capacity at 24” Load Center
5,500 lb
Fork Lengths
48", 60"
Maximum Fork Width
42.75"
48" | 60" | |
---|---|---|
Part Number | 900708 | 900709 |
Capacity 24 Load Center | 5,500 lb. | 5,500 lb. |
Fork Length | 48” | 60” |
Frame Width | 45.5” | 45.5” |
Frame Width With Steps | 54” | 54” |
Height | 35.5” | 35.5” |
Length | 59.25” | 71.25” |
Maximum Fork Width | 42.75” | 42.75” |
Minimum Fork Width | 8.5” | 8.5” |
Operating Weight | 505 lb. | 545 lb. |
Options | Factory Installed Couplers | Factory Installed Couplers |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
