Quick Excavator Mini
180°
Bucket Rotation
78"
Digging Depth
7.5"
Ground Clearance
Introduction
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.

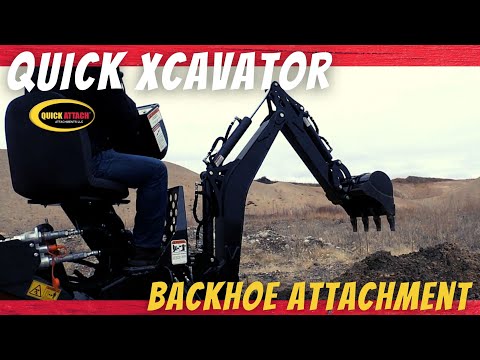

Move mountains with the Quick Excavator Mini.
The versatile curved-boom backhoe attachment fits your machine and your property. This is a rugged backhoe that’s ready to sink its teeth into any task you give it, from landscaping to concrete footings. The responsive controls give you precision and power at your fingertips. Running deep with features, the backhoe will turn a mountain of a job into a molehill.
Key Features
Everything you need to get the job done right.
Swinging Operator Seat
Enhances visibility of the work area for improved focus and safety.
5-7 GPM Hydraulic System
Delivers optimal performance for quick and efficient operation.
Dual Cylinder Swing
Provides powerful swinging capability for handling heavy loads.
Greasable Pivot Points
Simplifies maintenance with easy lubrication and durable bronze bushings.
Specifications
Specs tough enough
for anything
Bucket Rotation
180°
Digging Depth
78"
Ground Clearance
7.5"
BH780 | |
---|---|
Part Number | 901072 |
All Other Cylinder Diameter | Dipper 2.25”, Rest 2” |
Boom Lift Capacity | 515 lb. |
Bucket Digging Force Sae | 3,450 lb. |
Bucket Rotation | 180° |
Digging Depth 2 Ft Flat Bottom | 78” |
Dipper Stick Digging Force Sae | 1,890 lb. |
Ground Clearance | 7.5” |
Hydraulic Flow Requirements | 5-7 GPM |
Loading Height Bucket At 60 | 63” |
Main Boom Cylinder Diameter | 2.25” |
Operating Pressure | 2,250 psi |
Options | Tie Back Kit Bucket 9” Bucket 12” Bucket 15” Bucket 18” Bucket 18” Ditching Street Pads (pair) Factory Installed Couplers RH Support Valve (for Volvo, JCB, Case, New Holland, Gehl) |
Overall Operating Height Fully Raised | 91” |
Reach From Swing Post | 104” |
Stabilizer Below Grade | 10” |
Stabilizer Width Spread Position | 81” |
Stablizer Width Transport | 36” |
Swing Arc | 180° |
Transport Height Fully Retracted | 68” |
Transport Length | 64” |
Transport Weight | 675 lb. |
Transport Width Stabilizers Up | 36” |
