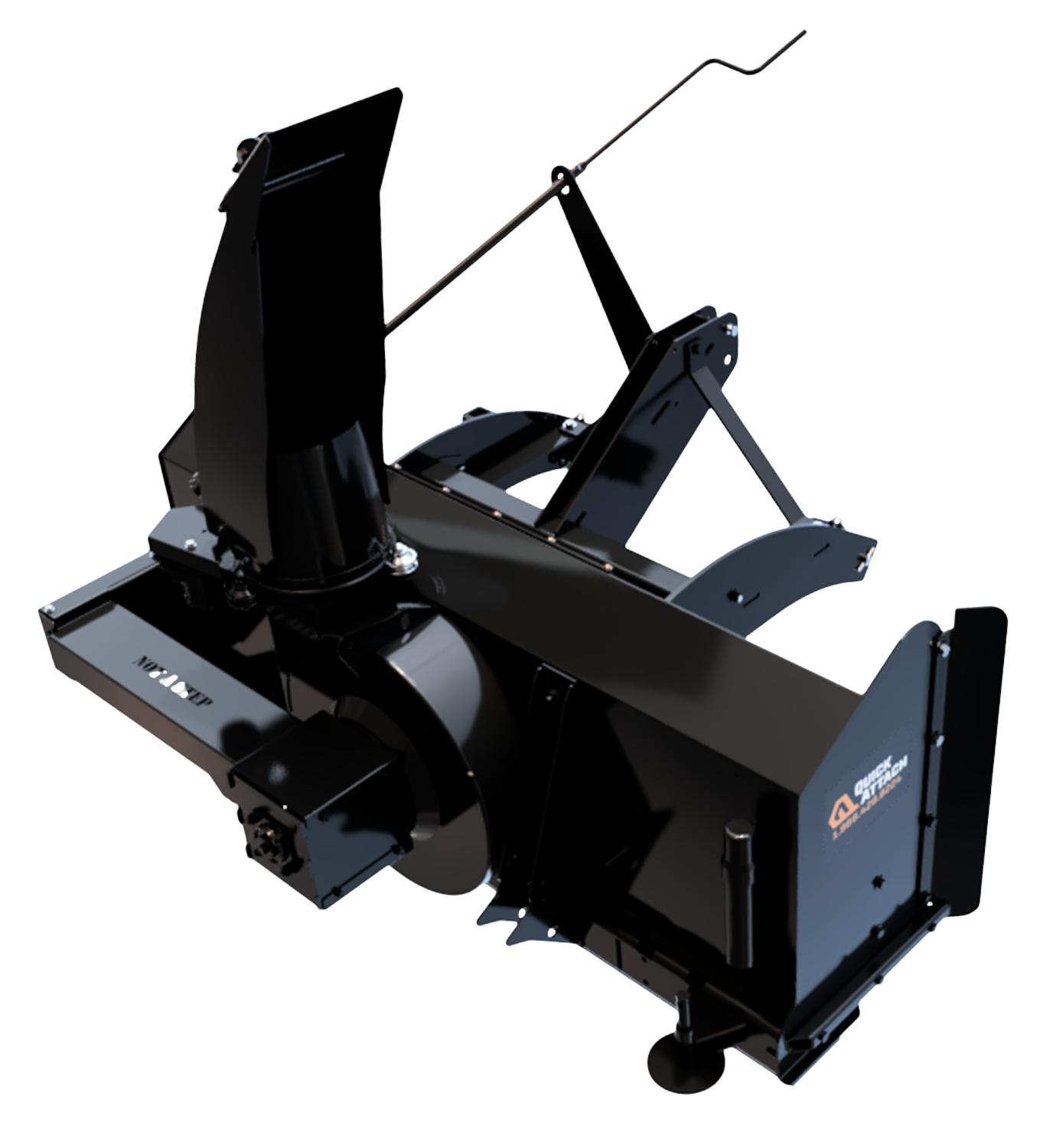

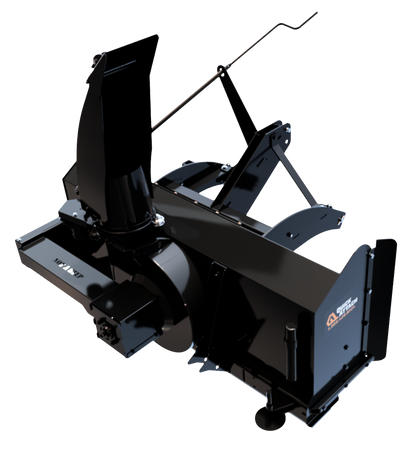

Quick Snow-Away RP
Quick
Snow-Away
RP
270°
Chute Rotation
20” & 24”
Fan Diameters
Up to 35’
Casting Distance
Introduction
Clear Snow with Ease.

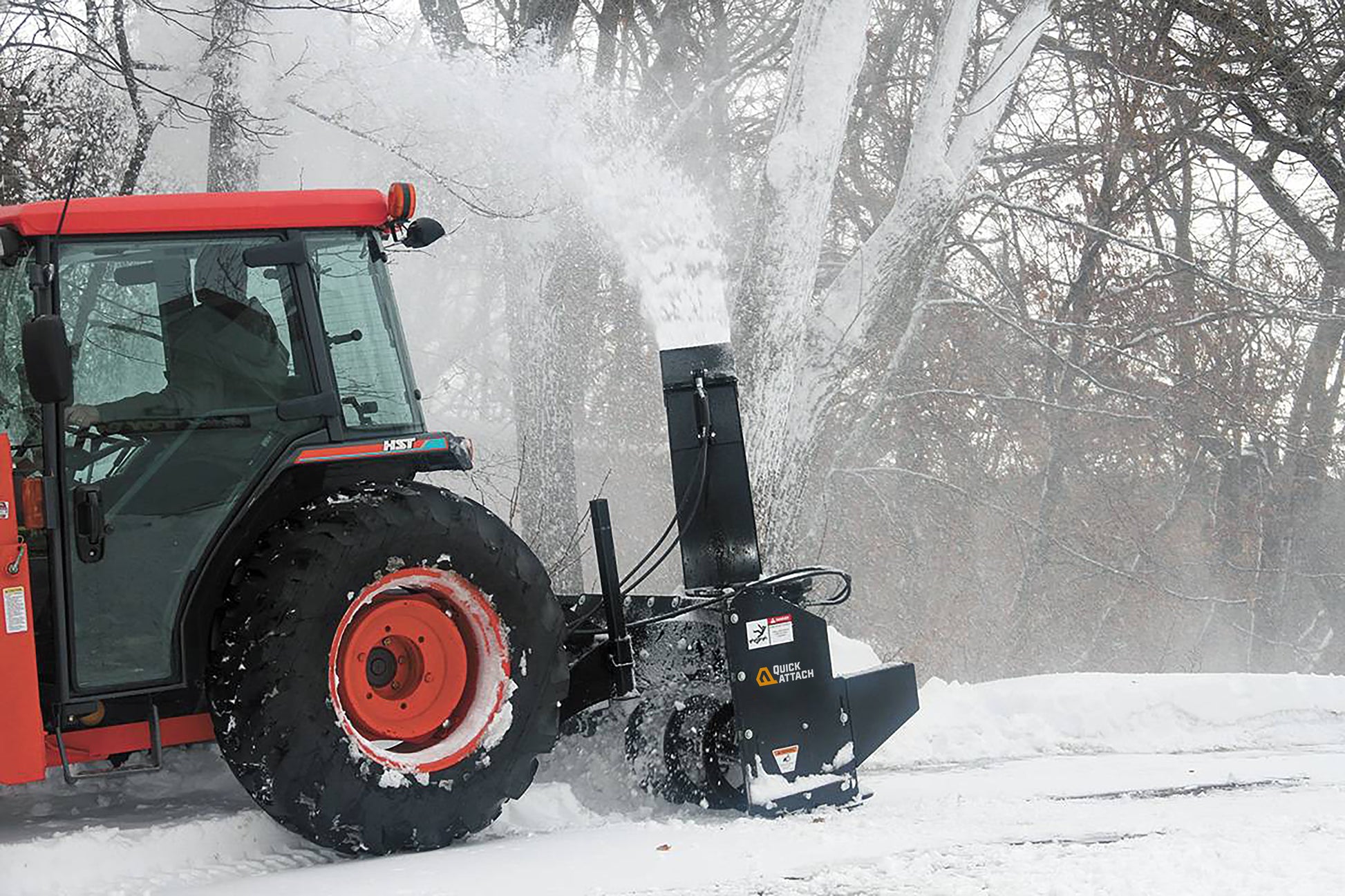

The Rear Pull PTO Snowblower allows you to drive forward while giving you the option to leave the front loader on the tractor if so desired. The blower lifts very high with the 3-point, so when a drift is encountered, the tractor can be turned around and backed into the drift to drag it out. The RP series is a 2-stage blower designed to gather snow efficiently.
Key Features
Everything you need to get the job done right.
Forward-Driving Snow Blower
Clear snow efficiently while driving forward, reducing operator fatigue and improving visibility.
270° Chute Rotation
Offers 270-degree chute rotation for versatile snow placement, allowing easy adjustments to changing conditions.
Optional Hydraulic Chute Rotation
Standard hand crank chute rotation can be upgraded to optional hydraulic control for greater convenience.
Two Fan Diameter Options
Available with 20” or 24” fan diameters to suit different snow removal needs, from light to heavy snowfalls.
Specifications
Specs tough enough
for anything
Chute Rotation
270°
Fan Diameters
20” & 24”
Casting Distance
Up to 35’
| 620RP | 725RP | 825RP | |
|---|---|---|---|
| Part Number | 920100 | 920102 | 920104 |
| Auger Diameter | 16” | 16” | 16” |
| Casting Distance | Up to 30’ | Up to 35’ | Up to 35’ |
| Cutting Edge | 5/8” x 6” Reversible | 5/8” x 6” Reversible | 5/8” x 6” Reversible |
| Cutting Height | 29” | 33” | 33” |
| Discharge Chute | 270° Manual | 270° Manual | 270° Manual |
| Driveline Series | 14 | 35 | 35 |
| Fan Diameter | 20” | 24” | 24” |
| Hitch Category | Cat. I | Cat. I | Cat. I |
| Hp Range | 20-35 HP | 30-55 HP | 40-75 HP |
| Operating Weight | 840 lb. | 1,075 lb. | 1,150 lb. |
| Options | "Hydraulic Chute Rotator w/hoses/couplers Hydraulic Deflector w/hoses/couplers Electric Deflector" | Hydraulic Chute Rotator w/hoses/couplers Hydraulic Deflector w/hoses/couplers Electric Deflector Rear Blade | Hydraulic Chute Rotator w/hoses/couplers Hydraulic Deflector w/hoses/couplers Electric Deflector |
| Pto Speed | 540 RPM | 540 RPM | 540 RPM |
| Rear Blade Optional | N/A | *Must have enough auxiliary ports in tractor to operate. Cylinders: 2" x 4" (2) Marker Rods (Included) Moldboard Thickness: .375" Grade 50 Steel Operating Weight: 165 lb. | *Must have enough auxiliary ports in tractor to operate. Cylinders: 2" x 4" (2) Marker Rods (Included) Moldboard Thickness: .375" Grade 50 Steel Operating Weight: 165 lb. |
| Shipping Weight | 920 lb. | 1,175 lb. | 1,175 lb. |
| Skid Shoes | 5/8” x 6” Reversible | Adjustable/Replaceable | Adjustable/Replaceable |
| Width Of Cut | 60” | 78” with Wings | 90” with Wings |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
