HD Pallet Forks
Quick Stack
HD Pallet Forks
42”-60"
Fork Lengths
Free Shipping
To 48 States
3700-5500 lb
Max Load
Introduction
The best money you can spend.

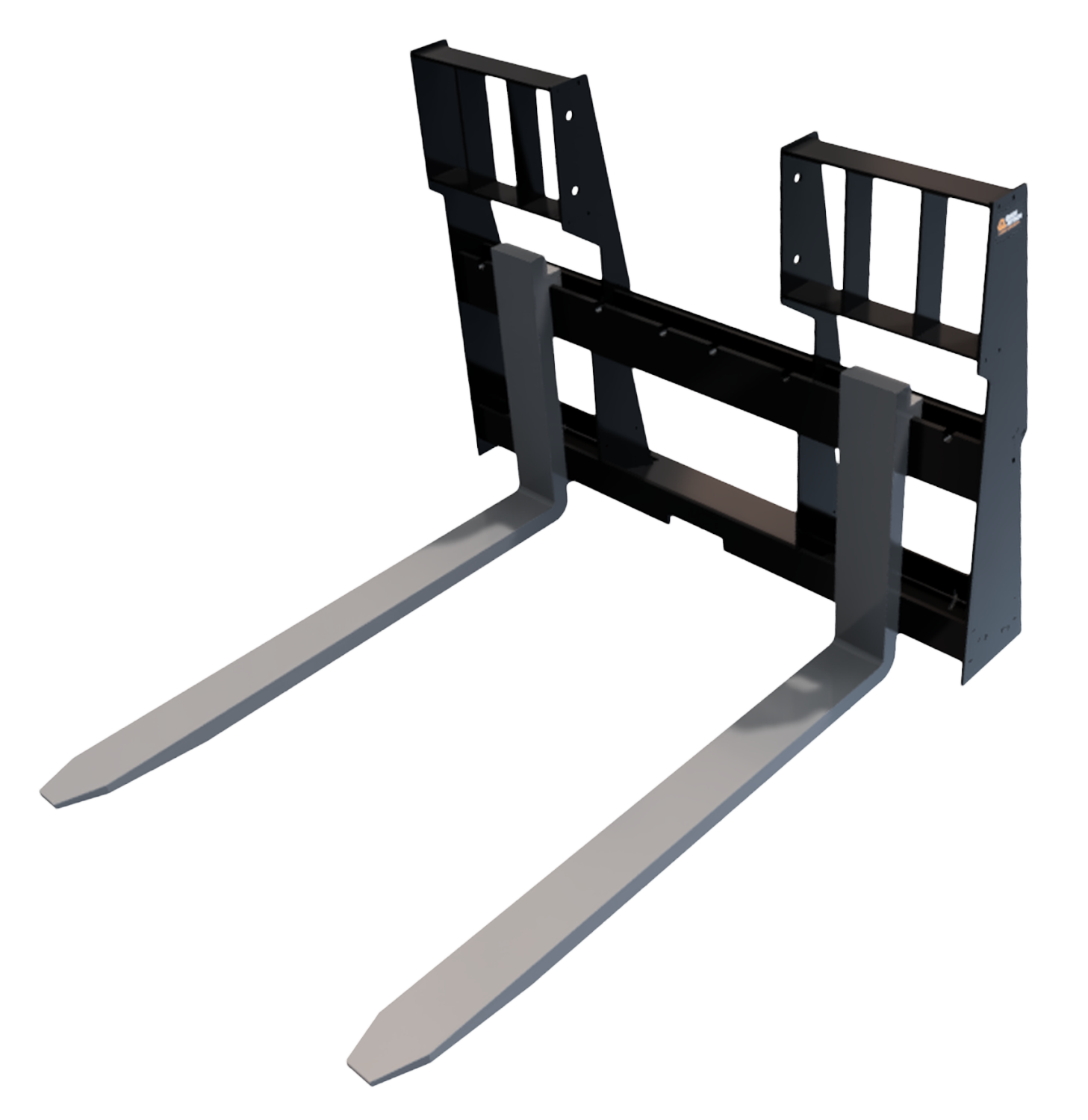

The HD Pallet Forks from Quick Attach are built for heavy-duty material handling across various applications. With standard class 2 pallet forks and a CNC machined carriage bar featuring three locking locations, they offer a secure and customizable fit. The thin frame design moves the load center closer to the machine, increasing lift capacity and enhancing load stability and control, making them ideal for demanding work environments.
Key Features
Everything you need to get the job done right.
Standard Class 2 Pallet Forks
Designed for versatile material handling, these class 2 forks are perfect for various tasks in warehouses, construction, and agriculture.
Smooth Carriage Bar with Multiple Locking Locations
The carriage bar offers multiple locking positions for secure, customizable fork spacing and improved safety.
Thin Frame Design for Greater Lift Capacity
The thin frame design moves the load center closer to the machine, increasing lift capacity and enhancing stability and control.
Specifications
Specs tough enough
for anything
Fork Lengths
42”-60"
To 48 States
Free Shipping
Max Load
3700-5500 lb
| 42" W/T Utility | 48" W/T Utility | 42" W/T | 48" W/T | 60" W/T | |
|---|---|---|---|---|---|
| Part Number | 901642 | 901643 | 901639 | 901640 | 901641 |
| Fork Length | 42” | 48” | 42” | 48” | 60” |
| Height | 39.3” | 39.3” | 39.3” | 39.3” | 39.3” |
| Length | 52.1” | 58.1” | 52.1” | 58.1” | 70.1” |
| Pair Load Rating 24 | 3,700 lb | 3,700 lb | 5,500 lb | 5,500 lb | 5,500 lb |
| Weight | 358 lb | 370 lb | 393 lb | 405 lb | 433 lb |
| Width | 45.3” | 45.3” | 45.3” | 45.3” | 45.3” |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
