The Big Bucket™
Grade 50
Steel
43"
Depth
3/4" x 6"
Cutting Edge
Introduction
The edge you need for optimal performance.

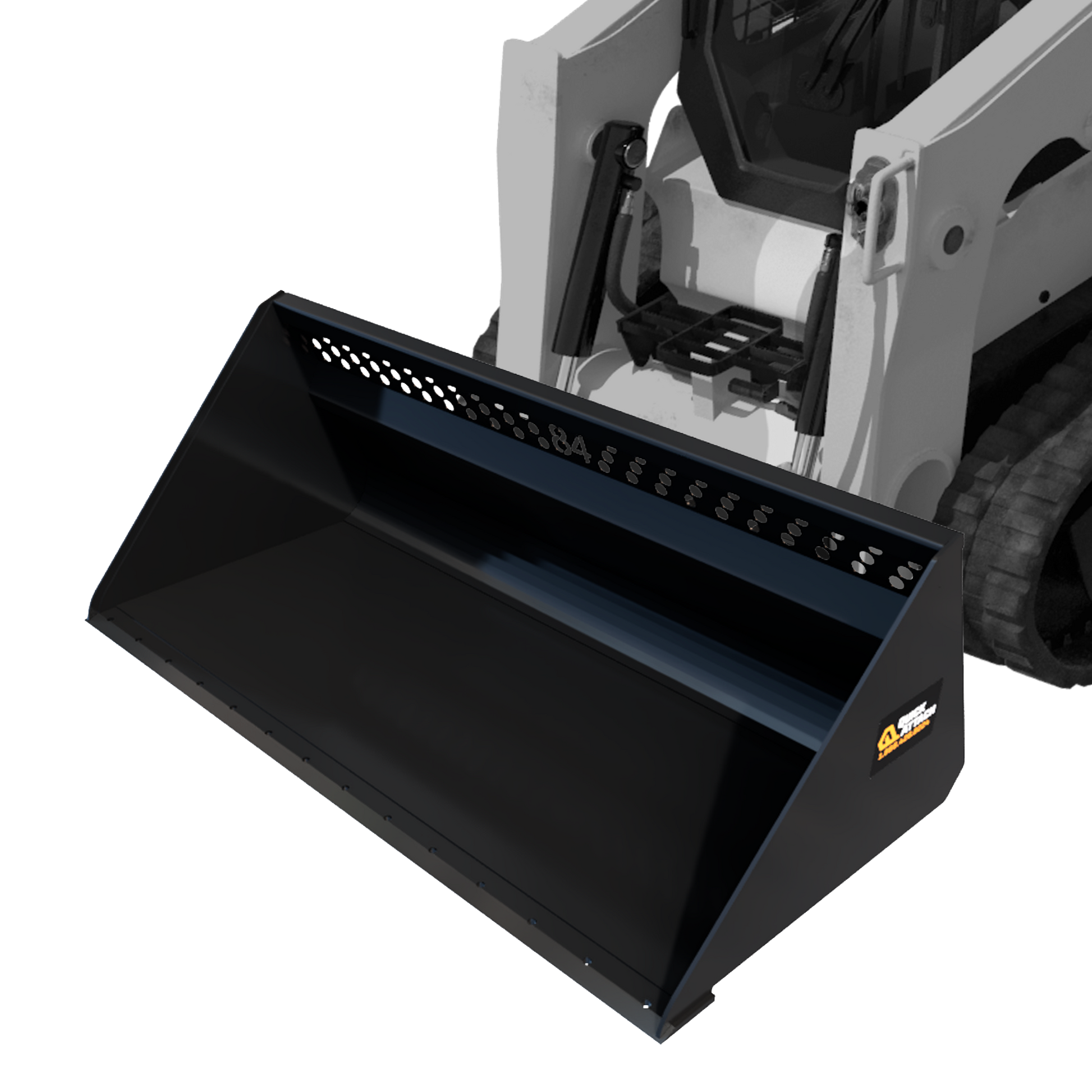

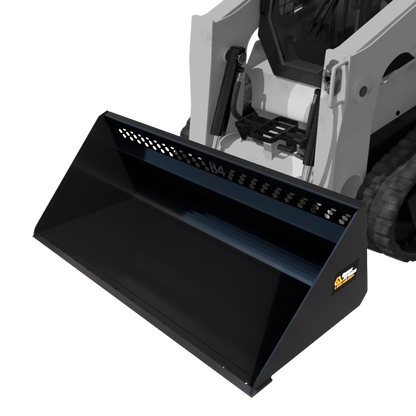

The Snow / Light Material Bucket is the ideal upgrade for moving large amounts of snow and other light material. Bigger capacity, not so big price. Save time and money by moving more in less time with this high-quality, long-lasting attachment. Screened back allows for maximum visibility with maximum volume.
Key Features
Everything you need to get the job done right.
3/8" Side Cutting Edges
Durable edges enhance cutting performance for tough conditions.
Grade 50 Steel Wear Bars
Made from 3/8” grade 50 steel for superior strength and abrasion resistance.
Reversible Cutting Edge
Optional bolt-on design allows for easy replacement and extended usability.
Multiple Size Options
Available in various sizes to suit different applications and machinery.
Specifications
Specs tough enough
for anything
Steel
Grade 50
Depth
43"
Cutting Edge
3/4" x 6"
72" | 84" | 96" | 108" | |
---|---|---|---|---|
Part Number | 901660 | 901661 | 901662 | 901663 |
Bolt On Cutting Edge | .75" x 6" (Steel optional) | .75" x 6" (Steel optional) | .75" x 6" (Steel optional) | .75" x 6" (Steel optional) |
Capacity Heaped | 32 cu/ft | 37 cu/ft | 43 cu/ft | 48 cu/ft |
Capacity Struck | 26 cu/ft | 30 cu/ft | 34 cu/ft | 39 cu/ft |
Cutting Edge | .75" x 6" | .75" x 6" | .75" x 6" | .75" x 6" |
Depth | 43 | 43 | 43 | 43 |
Height | 32" | 32" | 32" | 32" |
Options | Bolt-on Cutting Edge Steel (optional) | Bolt-on Cutting Edge Steel (optional) | Bolt-on Cutting Edge Steel (optional) | Bolt-on Cutting Edge Steel (optional) |
Steel Thickness Bucket Body | .179" | .179" | .179" | .179" |
Wear Bars Grade 50 | 3/8" Grade 50 | 3/8" Grade 50 | 3/8" Grade 50 | 3/8" Grade 50 |
Weight | 628 lb. | 742 lb. | 809 lb. | 898 lb. |
Width | 72" | 84" | 96" | 108" |
CHECK COMPATIBILITYMachine not listed? Contact us for info on compatibility.
Reviews
Real reviews from real customers.
Manufacturing
Proudly made right here in the USA
